High Torque Clock Movement (Ultra Quiet/Smooth-) with 8-1/4 In. Long Balanced Hands, No4 and Wall Mounting Hub, Large Wall Clock

Sold by clockparts
(2)
$22.95
Free shipping
$22.95
In stock
Preparation takes 1-2 business days
Arrives from the United States
Item details

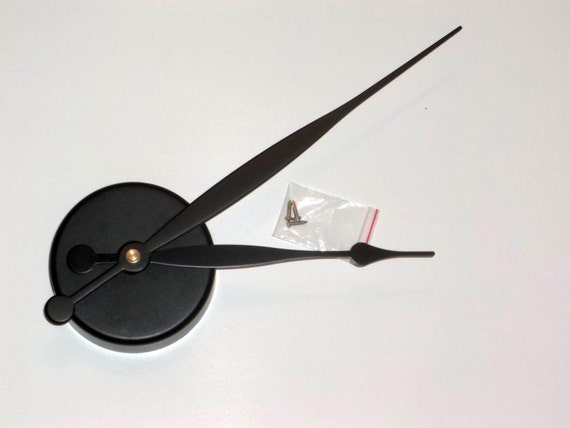

Now you can make that large clock with this high torque quartz movement and large 8-1/4" balanced metal hands. Includes high torque motor, your choice from 3 threaded shaft lengths, 8-1/4" balanced black spaded hands and mounting hub w/ built-in hanger for direct wall mounting of your clock. Conceals your motor for that finished look.

This is a continuous motion high torque movement, no stepping of gears, super quiet......most quiet high torque motor available. Those of you with keen hearing will greatly appreciate it's quietness.

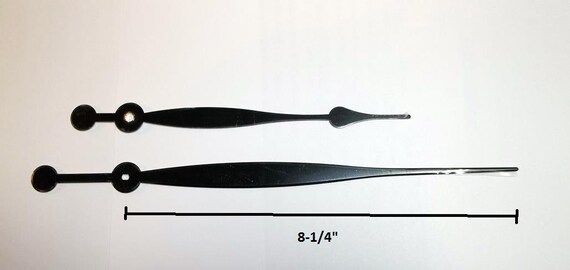

Minute hand measured from center of mounting hole to end tip is 8-1/4", total 10-1/4" end to end
Hour hand is 6-1/4" center of mounting hole to end tip, total 7-1/2" end to end

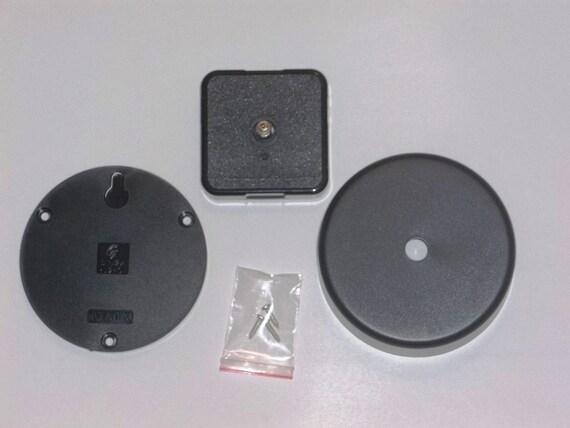

High torque movement:
case size: 2-1/8" sq x 5/8" thick
choose from 3 threaded shaft lengths:

1/4" threaded shaft, total 5/8" including hand stem
7/16" threaded shaft, total 13/16" including hand stem
9/16" threaded shaft, total 15/16" including hand stem

Wall mounting hub size: 3-3/8" in dia. x 1" deep. High impact molded plastic and may be painted any color, use a primer then your color coat

3 yr warranty
requires one "AA" battery (not incl.)
all mounting hardware.

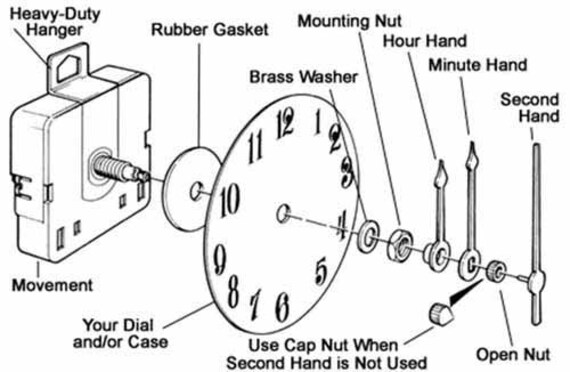

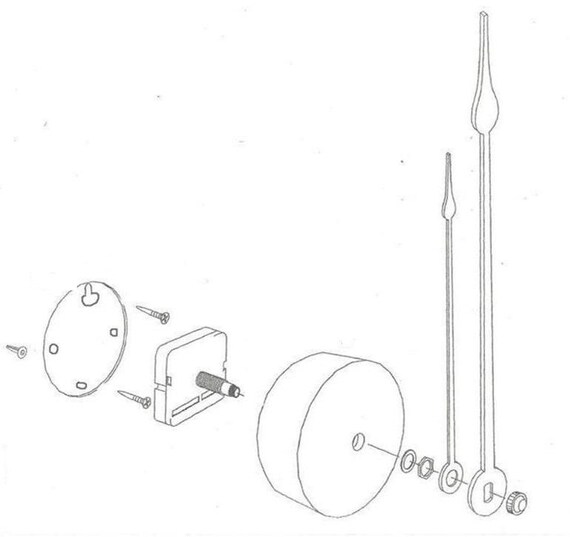

I will attach a photo of assembly to your purchase email

NOTE ON MEASURING:

Shaft length is brass threaded portion that must pass thru your clock face, leaving a couple of threads to mount retaining nut.

MEASURING DIAL FOR HAND SIZE: measure from top of #12 to bottom of #6, divide in half. This will give your approx. minute hand length.

I accept paypal and direct checkout

Questions please email me
