Complete Belt Knife Grinder Wheel Set, 4" Drive, 5/8" Bore, 4" Tracking, & a pair of 2" x 2" Idler Wheels

Sold by PfunderFab
(8)
$134.99
+ $11.49 shipping
$134.99
+ $11.49 shipping
In stock
Preparation takes 1-2 business days
Arrives from the United States

Item details

Please Buy With CONFIDENCE! I have sold hundreds of these wheels through Ebay with Zero Complaints!

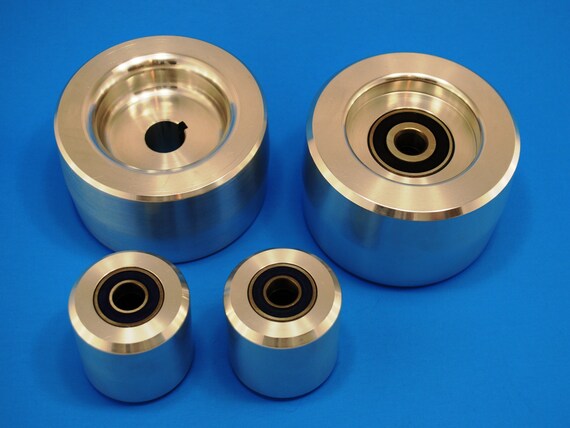

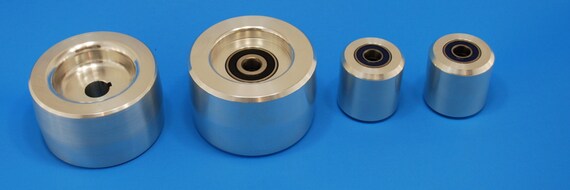

This Listing is for a Complete knife grinder wheel set. It includes 4" drive Wheel (with 5/8" BORE) , 4" tracking wheel, and two 2" idler wheels.

The descriptions of the items are as follows.

These wheels are made of billet 6061 aluminum right here in the USA on a precision CNC lathe center.

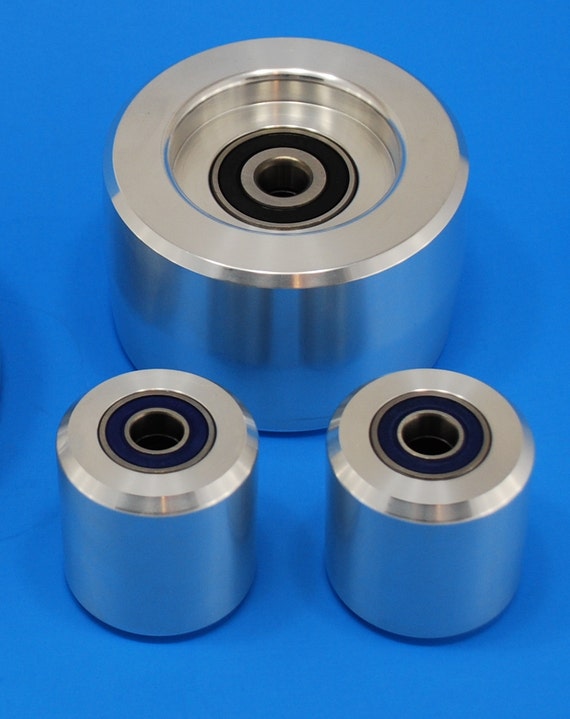

The 2" wheels are 2" in diameter and 2" wide. They have pressed in sealed radial ball bearings and contoured edges to aid with belt tracking (these wheels are typically used with a flat platen attachment on the belt grinder) There is a spacer between the bearing to help prevent over tightening.

The 4" tracking Wheel is 4" diameter and 2.5" wide. It is crowned to help with belt tracking and it also has the spacer between the bearings to prevent over tightening.


The inside diameter of all bearings used is 1/2". Make sure the Method you use to mount the wheels (I just use a 1/2 bolt with no washer and a nut on the other side) does not make contact with the inner and outer races on the bearings at the same time causing it to bind.

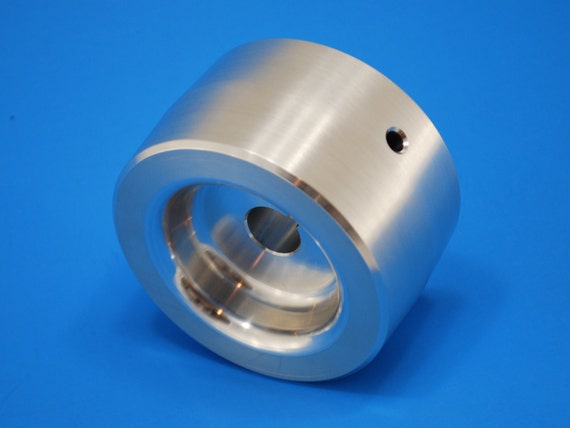

The Drive Wheel is 4" diameter and 2.25" wide. It is crowned to help with belt tracking.

This drive wheel in this listing is a 5/8" bore with a 3/16 keyway and set screw.



    Reviews
    Average review
    (8)
    11 hours ago by Troy Jordan
    I couldn’t have imagined better craftsmanship on these grinder wheels. I’d been wanting to build a grinder for a couple years, but my hesitation was the huge variable of the motor and wheels (and possibly pulleys and belts). I just attached the drive wheel directly to the motor shaft; it couldn’t have been easier! I used to roll my eyes at reviews that went on and on about packaging. I won’t anymore; these things were definitely not going to be damaged during shipping. I’m now planning the belt grinder build I’ll make for my son. I’ll absolutely be buying these again!
    Dec 26, 2017 by Brook Muldrow
    Sep 16, 2017 by willhamilton34
    Good quality , nice finish
    Apr 4, 2017 by ownbyyo
    Apr 6, 2016 by SarahiFelix
