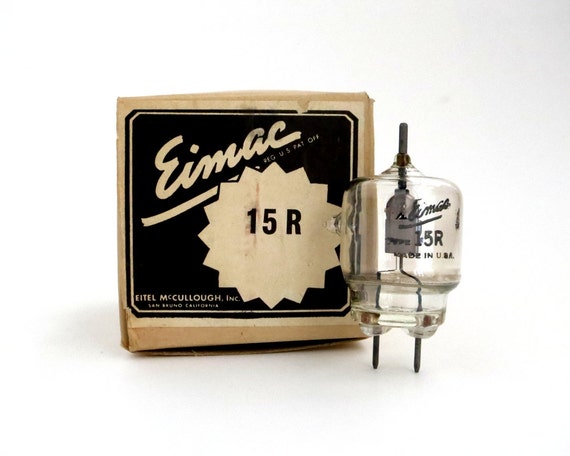

The Eimac 15R vacuum tube was first produced in 1940. It was used in the ASB-5 radar display unit. The ASB-5 was part of an airborne radar set used during World War II. The 15R is a high-voltage vacuum diode with a thoriated tungsten filament. These are new old stock manufactured in the 1940's and are in original boxes. This tube is inspectacular condition. The boxes have just a bit of shop wear and have a beautiful Eimac logo.

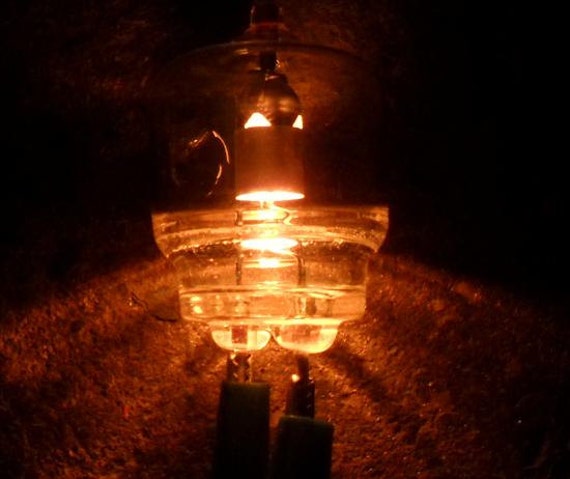

Overall length 2.75". Diameter 1.375" The third photo shows the 15R glowing. Only the low voltage filament need to connected for the tube to light.
filament: 5 volts @ 4 amperes
peak inverse voltage: 20,000 volts
max plate current: 30 ma

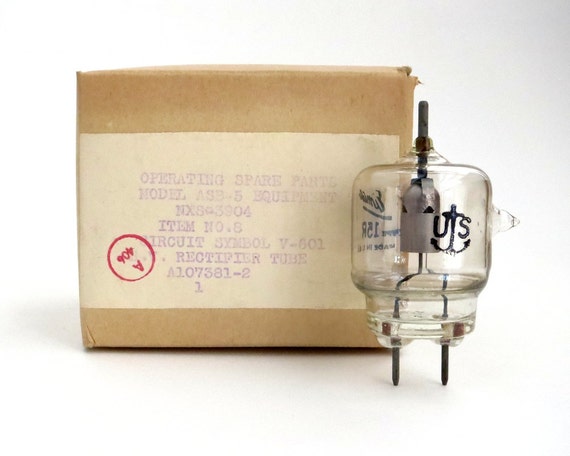

The side of the box reds:
OPERATING SPARE PARTS
MODEL ASB-5 EQUIPMENT
ITEM NO. 8
CIRCUIT SYMBOL V-601
H.V. RECTIFER TUBE
Eitel McCullough Corp was the original name of Eimac and was started in 1934.
I also have 15R tubes with uranium glass (vaseline glass) seal. Uranium glass glows under UV light:
