Wooden box woodworking plans for DIY #01. PDF digital file instant download. Make your own jewerly box. Light wood, dark wood, hardwood

Sold by WoodenArmy

This is a digital file

Get Shipping Estimate
In stock
Digital download

Made in Saint Petersburg, Russia

Item details

This is a .pdf digital file. You will not receive a paper copy of this file. This listing is for the model woodworking plans only.

No refunds on digital items once you have downloaded the *.pdf file.

Model Specifications:
Dimensions outer - 304 mm length, 204 mm width, 124 mm height
Dimensions inner - 250 mm length, 150 mm width, 64 mm height
Parts quantity - 41
Material - wood
Build complexity - easy

PDF Specifications:
Sheets - 22
Sheets format - A4
Measurements - metric ISO

PDF Content:

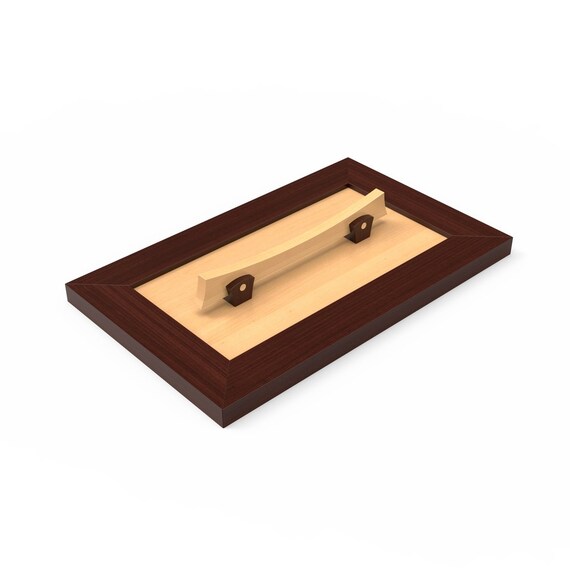

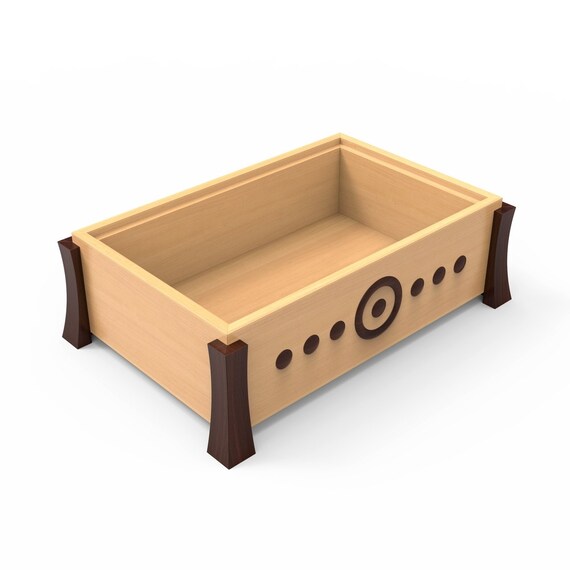

1. Model 3d render
2. Isometric view of all assembly
3. Orthographic view of all assembly
4. All part plans with dimensions in metric units (mm)

The plans are not include step-by-step assembly instructions so a knowledge of woodworking and tools is needed to complete the project.

Here is a link to the help section for digital downloads

If you have any problems downloading the .pdf file, you may contact me and I will send it to you e-mail.

You can print this plans it on your own printer.

This item is a limited license. Under this license you are permitted to build the model for personal and non-commercial use. You are explicitly not permitted to sell ans share the model or the plans for building the model.
