Diagonal Lines Single Swing Gate Drawing Spec Sheets

Sold by DrawingsAndMaps

This is a digital file

$9.00
Get Shipping Estimate
$9.00
In stock
Digital download

Features
Digital
Made in Salida, Colorado

Item details

This wooden gate is easy to built as long as you have the drawing sheets with all the measurements.

Included in the purchase you will receive design plans (specs) for one gate size of the Diagonal Lines Single Swing Gate:

Width: 49.5" & Height 72"

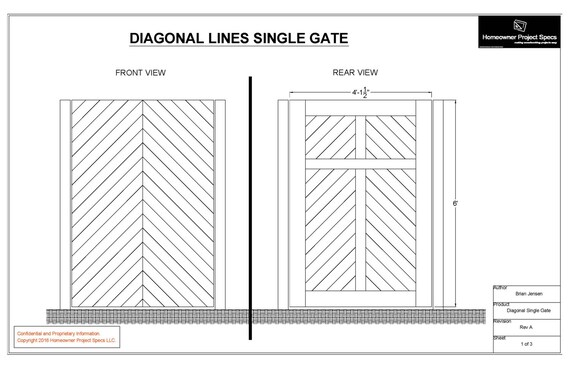

See image to the left on how the gate is measured.

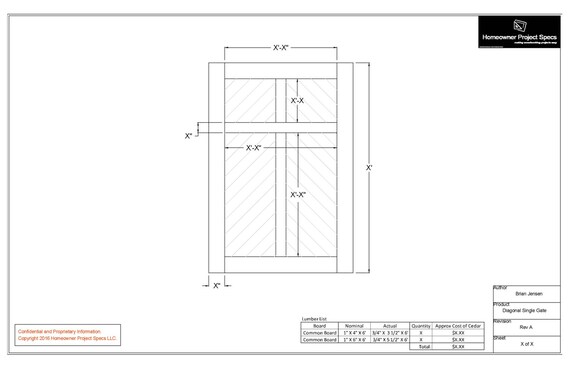

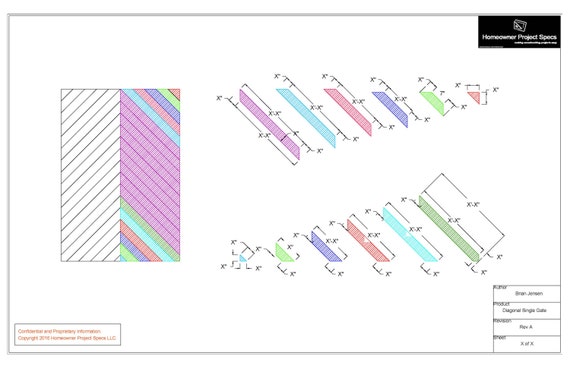

All spec sheets will look like the Spec Examples shown in this listing. You will see all the measurements you will need to make your cuts. You will also see a lumber materials list that precisely tells you what you need to purchase from your lumber store and an approximate cost.
