Traditional Picket Fence Section Drawing Sheets

Sold by DrawingsAndMaps

This is a digital file

$4.95
Get Shipping Estimate
$4.95
In stock
Digital download

Features
Digital
Made in Salida, Colorado

Item details

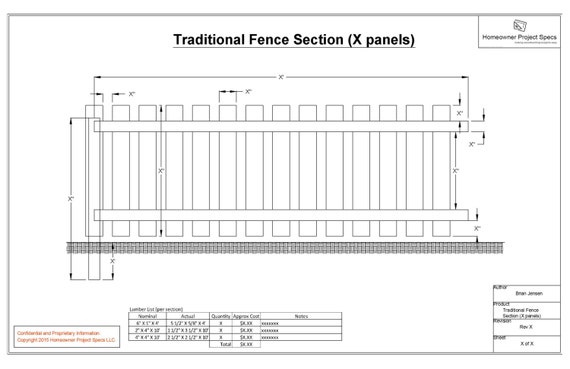

This fence is a traditional spaced picked design and the spec sheets will show a single section of this design (post to post), The spec sheets show a 4 foot tall fence in two variations*:

1. 10 ft sections with 11 panels

2. 10 ft sections with 14 panels


The spec sheets will make it much easier to built the fence and determine the measurements and separations between the panels. Each spec sheet will have a lumber list of the lumber needed, the quantity, and an estimated cost.

*The section design and spec sheets are for a 4 ft tall fence but can easily be made into a different height by adding or subtracting equally to the panels and the space between rails.
