Horizontal Lines Single Swing Gate Drawing Sheets

Sold by DrawingsAndMaps

This is a digital file

$9.00
Get Shipping Estimate
$9.00
In stock
Digital download

Features
Digital
Made in Salida, Colorado

Item details

This wooden gate is easy to built as long as you have the spec sheets with all the measurements. The pictures on the left show this gate design built with pressure treated decking boards that have been stained with transparent stain. The spec sheets for sale uses cedar boards which are much more common.

Included in the purchase you will receive design plans (specs) for three gate sizes of the Horizontal Lines Single Swing Gate:

Width: 42" & Height ~38"
Width: 48" & Height ~42"
Width: 48" & Height ~55"

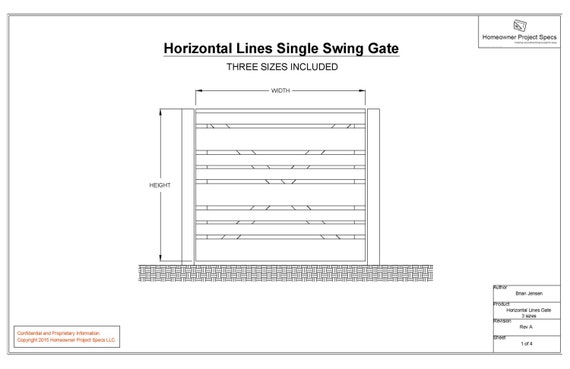

See image to in this listing on how the gate is measured.

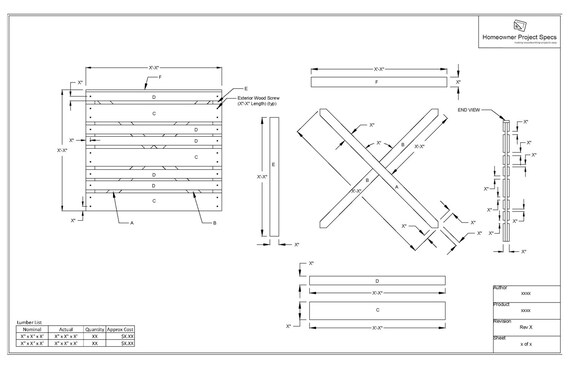

All spec sheets will look like the example shown in this listing. You will see all the measurements needed to make your cuts and place your screws. You will also see a lumber materials list that precisely tells you what you need to purchase from your lumber store and an approximate cost.
