Dragon or Tiger Chu ko nu PLANS repeating crossbow Chinese Zhuge nu Lian nu

Sold by MoonColonist

This is a digital file

$5.00
Get Shipping Estimate
$5.00
In stock
Digital download

Features
Digital

Item details

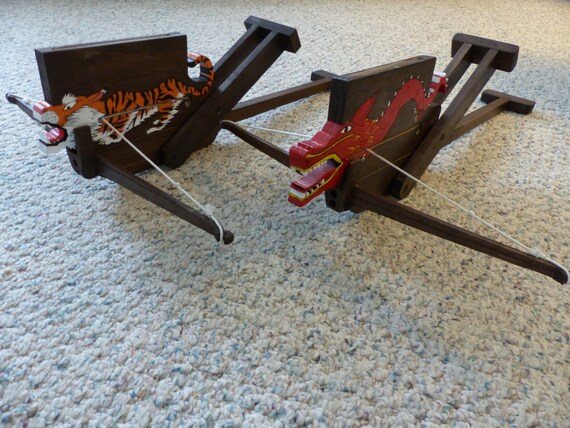

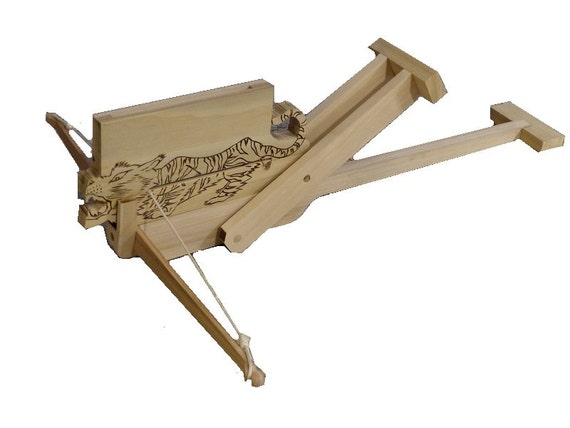

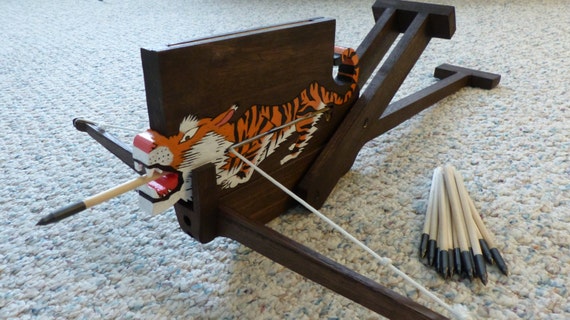

This is a set of complete plans for a Dragon or Tiger "Chu ko nu." It is an ancient Chinese mechanical repeating crossbow. The plans also include the printable dragon and tiger patterns that you glue on to your wood pieces, then cut out and wood-burn the beautiful pattern. Then you can paint or stain it how you want to. It is a crossbow and a sculpture, like a display woodworking item that is also fun to shoot!

Assembly instructions here:
https://www.youtube.com/watch?v=SCGHTDqgWHU

I have been fascinated by this type of crossbow since my early teen years and have been building and experimenting with them for more than 10 years. This set of plans displays my most current and refined iteration. It is very fun to make this and see your own fine work come together, then see and feel the mechanism function smoothly. Very satisfying.

To build this you will need some small hardwood boards as will be listed on the cover page of the plans (this wood is available at hardware stores ex: Lowes). You will also need white glue, two wood screws, and one small nail.

The download for the plans is as one zip file. It has all the plans in it. If for some reason the download doesn't work, contact me and I can send the plans as images through email, or through pictures in an Etsy conversation.

Tools needed include:
Saw (prefer a band saw with scrolling blade, but a thin bladed hand saw can work),
Sand paper,
Round wood file,
Clamps for gluing,
Drill with selection of bits,
Wood burning tool.
