Diagonal Lines Double Swing Gate Drawing Spec Sheets

Sold by DrawingsAndMaps

This is a digital file

Get Shipping Estimate
In stock
Digital download

Made in Salida, Colorado

Item details

This wooden gate is easy to built as long as you have the spec sheets with all the measurements.

Included in the purchase you will receive design plans (specs) for two gate sizes of the Diagonal Lines Double Swing Gate:

Width: 85" & Height 48"
Width: 97" & Height 72"
See image to the in this listing on how the gate is measured.

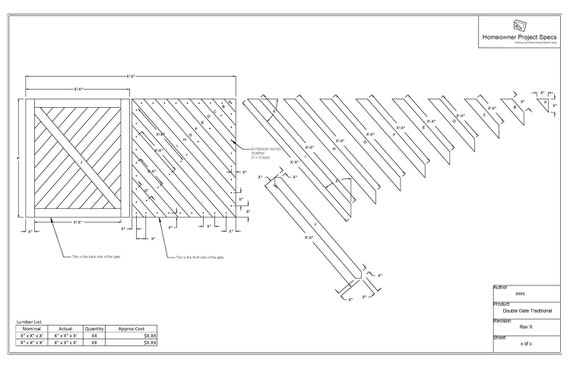

All spec sheets will look like the Spec Example image shown in this listing. You will see all the measurements you will need to make your cuts and place your screws. You will also see a lumber materials list that precisely tells you what you need to purchase from your lumber store and an approximate cost.
