5" x 5" Clicker Press for your Arbor Press

Sold by CutRiteDies
(4)
+ $18.00 shipping
+ $18.00 shipping

Features
Handmade
Made in Bells, Texas

Item details

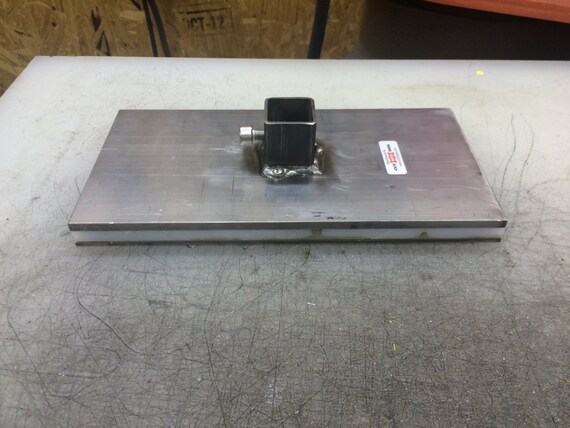

5" x 5" Arbor Press Plates with Cutting Board. Receptacle can be made to fit a 1" x 1" Ram or 1-1/4" x 1-1/4" Ram. Receptacle comes with a ALLEN SET SCREW 8mm x 1.25.

Top Plate is made with 1/4" thick to prevent flexing.

We have other sizes available. Ask for custom quote.


Reviews
Average review
(4)
Mar 13, 2018 by Jake Hancock
Great product. Excellent service. Highly recommended.
Oct 25, 2017 by Moon Dog Company
Exactly what I needed, took a little slow of the communication, and takes some work to get it on the press.
Jun 24, 2017 by Kelli O'Connor
Great product, wonderful customer service and very fast shipping. Highly recommend this seller
Jan 5, 2017 by Iryna Anastasiy

Shipping & policies
Preparation takes 3-5 business days
Arrives from the United States
Estimated Shipping
Shipping to
Zip or postal code

Payments

Cancelation Policy: Because these are custom made dies, once work has begun, an order cannot be cancelled.

Payment Policy: Because these are custom made dies, work will not begin on your die until payment is received.


Returns & exchanges

Our dies are guaranteed to match the pattern you provided, however, we are not responsible for damage or losses due to shipping mishaps. We use reliable carrier services and will provide you will appropriate tracking information.


Additional policies

BUILDING/ORDERING YOUR CUSTOM CLICKER DIE:

Step 1: Trace your pattern onto a poster board and cut out, making sure your pattern is exactly the shape and size you want. Measure the perimeter of the die pattern.

Step 2: Decide on the type and size of steel rule that is best for your project, select it from our shop and change the quantity number to the number of inches needed for your pattern.

Double edged steel is more economical for patterns that can be reversed, such as shoe or glove patterns. The die is simply turned over and clicked to produce the right and left pieces.

The 3/4" height (19mm) x 2.5mm (thickness), this works better if you require 90 degree corners and don’t have heavy leather/material to click.

Choose the 3/4" height (19mm) x 3.0mm (thickness) if you are working with thicker cuts of materials. This stronger steel, however, does not have the bendability of the 2.5 mm and the corners will be more rounded.

If you plan to do a large volume of clicking on thick material, the 1 1/4" height (32mm) x 3.0mm (thickness) steel rule would be the best choice. It is the sturdiest die we make.

Step 3: Every die has to have braces. This allows them to withstand the pressure of the press as it clicks the leather. The number of braces needed depends on the size and shape of the die. Most die will need 2-4 braces. If you’re not sure how many to order, select 3 under quantity and we will advise you, if you more are needed.

Step 4: If your project requires holes or slits punched in the leather/material, compare the shapes of our crew punches, perforator tubes or chisels (slits), to your pattern requirements and decide on the size. Select the ones you need from our shop items, change the quantity number to the number you need for your die and order them.

And you’re all done! We use your poster board pattern to make Custom Clicker Die that, if cared for properly, will save you time and money for decades to come!
