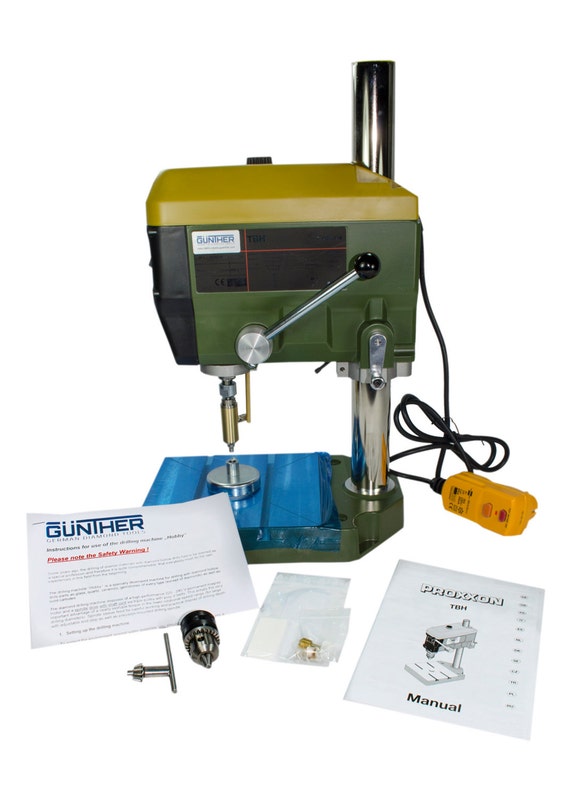

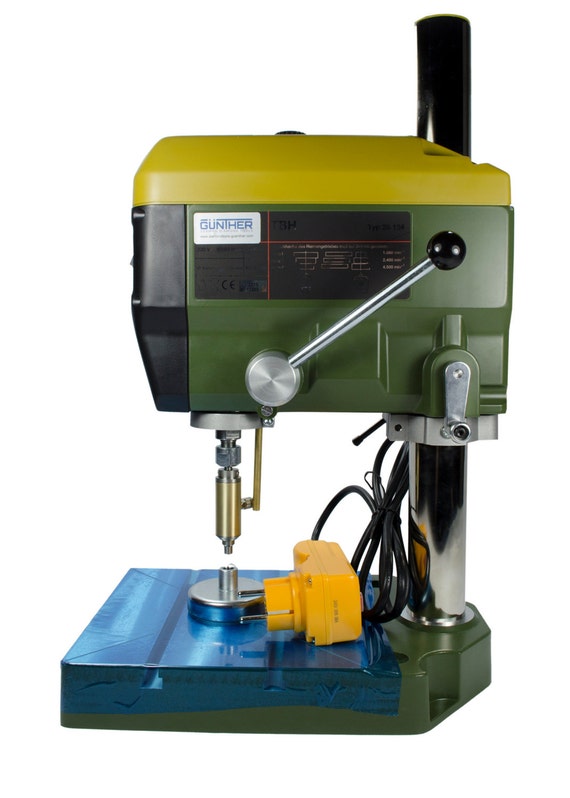

The Gunther Hobby Drilling System is perfect for the jeweler or stone cutter who need precision tools to create new designs. The Gunther "Hobby" includes a Multidrill System installed on a premium German Proxxon drill press. The drill press has a very powerful 220 - 240 V-permanent-magnet-motor and a spindle drive via a 3-time band pulley with poly-v-bands. This gives the very important advantage of the almost 6-time torque in the lower speed range (for large drilling diameters). Spindle-sleeve-feed for delicate work, and a practical drill-depth-display with an adjustable end stop, as well a precisely located drill spindle.
The Multidrill System will perform only as good as the drill press that its mounted on. The Hobby system allows you to push the limits of possibility with the Multidrill system by pairing it with a top of the line drill press.

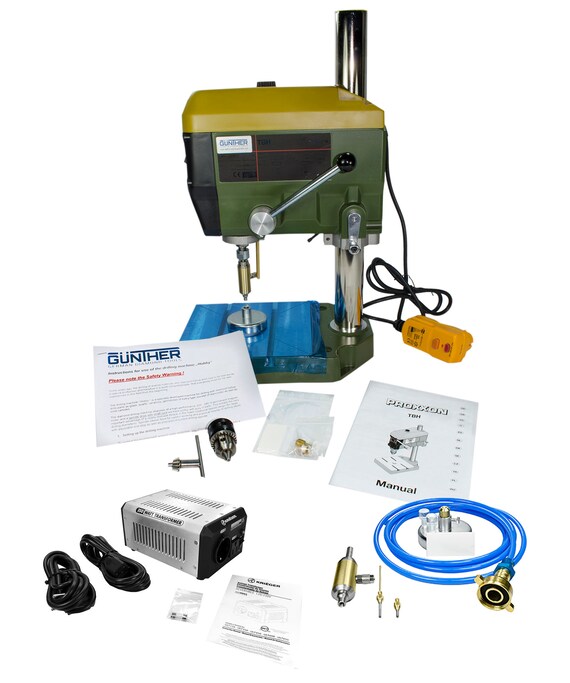

This system comes with the following:
1 - Proxxon Bench Top Drill Press 1 - Drill spindle with automatic core ejector and 7 mm clamping shaft (Note: a 6 mm clapping shaft can be provided as custom option.) 1 - Pressure hose (7-feet in length) with standard female hose connection 1 - Magnetic base 1 - Metal insert for drill bit counterpart 1 - Plastic insert that is concave for beads or spheres (i.e. bead nest) 1 - Plastic insert that is flat for setting anchors 1 - 2.5 mm diameter diamond drill bit with ejector needle (recommended size to learn with) 1 - 2.5 mm counterpart 1 - Sharpening stone 1 - KRIËGER 350 Watt Voltage Transformer 120V to from 230V AC outlet American European Step up down Converter 50 60 Hz outlets includes IEC German Schuko Nema 5-15P cord connection MET certified approved under UL CSA ULT350
Motor 220 - 240 volt. (Please note: KRIËGER 350 Watt Voltage Transformer is provided) Rotational speed of spindle: 1.080, 2.400, and 4.500/min. Spindle sleeve stroke 63 mm Height adjustments via a crank handle 70 mm Overhang 140 mm Usable table area 200 x 200 mm Column 45 x 500 mm
**Please note this unit is manufactured in Germany for the European 220v grid and comes with a European plug. To operate this system in the US you must use a transformer to convert the European 220v system to the USA 110v system. We have included a Kreiger 350 Watt Transformer to make this conversion as part of your package.**
Depending on US inventory status, please anticipate 6-9 weeks for delivery. Call with any questions! Kevin Serrato (520) 314-9809, or email at kevin [!at] guntherdiamondtools.com
