Butterfly pendant TUTORIAL - step by step instructions on every detail of this hybrid pendant. Multiple useful adaptable techniques DIY

Sold by IMNIUM
(21)

This is a digital file

$26.50
Get Shipping Estimate
$26.50
In stock
Digital download

Features
Digital
Made in Varaždin, Croatia

Item details

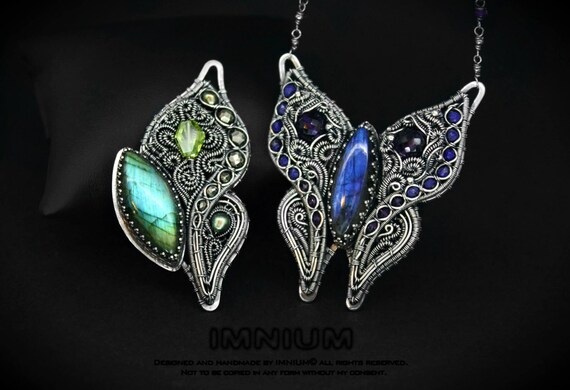

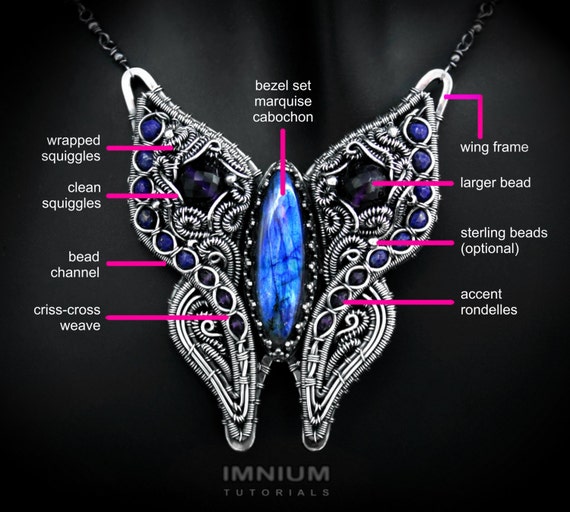

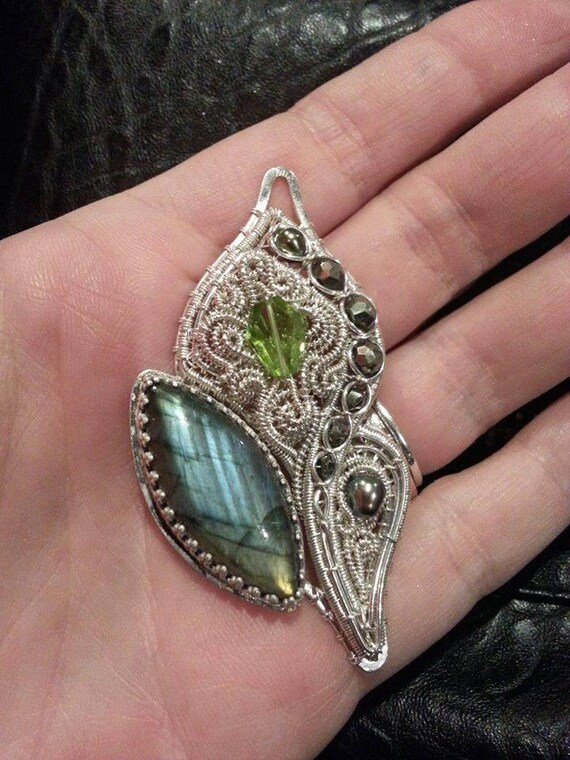

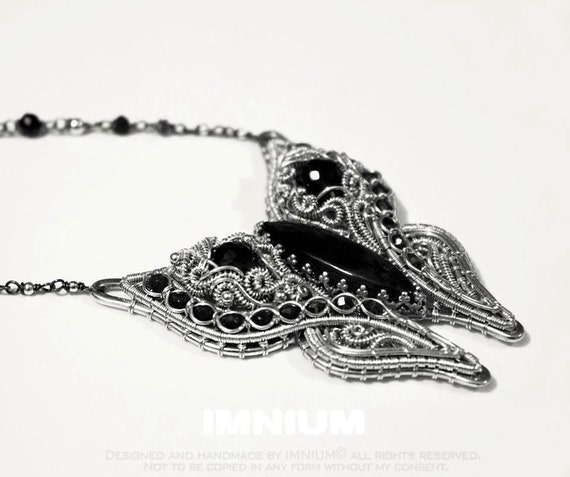

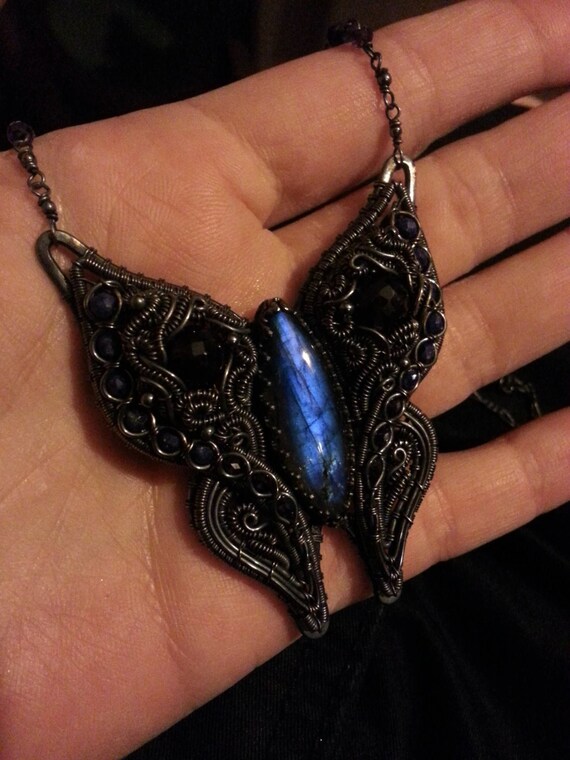

This is a complex tutorial that shows you how to make a hybrid pendant (soldered and wrapped) - how to plan and construct a soldered base, set the stone in gallery wire, how to design the wrapped parts and connect everything together. It is a highly adaptable project - you can make the full butterfly, a half butterfly or a completely different shape if you want to, the tutorial and all the techniques in it can be used on any shape (leaves, flowers, teardrops, ovals, circles...)
The new thing in this tutorial is the swirly part that fills the wings which can be used to fill in any possible shape, flat or 3D.
In case you have already bought my "Complex pendant" tutorial you are familiar with the channel borders (the wires going around the smaller stones) but in this tutorial those are done horizontally, seat stones that decrease in thickness and do some other things too :D

In case you have not soldered anything yet and do not have the necessary equipment fear not! It is inexpensive and lasts for years; scroll down to the tools section and at the end of it you'll find the exact product numbers from Rio Grande. Grand total is about 50$.

All the other tools are also inexpensive and can be either bought in hardware stores, on Ebay, from Rio or other sellers.

You will get 62 pages of detailed instructions - 210 photos in 128 steps (2 PDF files).
There is one little typo on page 23; the chapter number should be IV instead of III; we left it like that because we started having technical difficulties with our computers and were unable to change the number.


Skill level: advanced but it all depends on what you are used to making :) I taught this tutorial during a wire wrapping retreat and all the students successfully learned how to make it (some chose to make a half butterfly because it is very time consuming to make the full version). My advice is work slowly, be patient and don't give up.

If you buy the tutorial and decide to make and sell the project pendant you are free to do so just note in the description of your pendant that it was made following this tutorial.
On the other hand you are not allowed to multiply, share, copy or distribute in any way the tutorial or any of its components (i have spent over 2 months writing it so please respect this last part about not distributing/copying/etc. it :) thank you!). If you buy this/any of my tutorials with the intention of teaching the subject matter to others each one of your students is obligated to buy a tutorial of their own from me. Not from any other source. Buying a tutorial does not provide the right to distribute the contents of it in any form (written, verbal or otherwise). If you want to teach one of my tutorials your students or you need to buy a copy of the tutorial for every person that attends.


Also, be 100% sure you want this tutorial because I do not do refunds for tutorials.
There was some confusion lately so just to clarify - this is NOT a physical book, you are not buying a piece of finished jewelry, this is a digital tutorial in form of 2 PDF files. After you buy the tutorial you will get an instant download link from Etsy where you can download all the files. If something goes wrong please let me know and i will send it to you manually.



From the tutorial:

Prior knowledge needed:
· Soldering
· Filing
· Advanced wire wrapping
· Basic hammering
· Oxidizing (optional)
· Flex shaft use / final polishing (optional)


MATERIALS:
IMPORTANT: The quantities noted here may vary due to a number of factors – the size and shape of the stone you choose to use, how accurately you make the wing frames, the pliability of the thinner wire, how tightly/neatly you wrap and if/how much you veer off course. If you want to be extra sure you won't run out of wires close to the end, cut slightly longer pieces.

TOTAL:
- Gallery wire - 6cm
- 14 gauge sterling silver round wire, half-hard - 30cm
- 18 gauge sterling silver round wire, half-hard - 69cm
- 22 gauge sterling silver round wire, dead soft - 136cm
- 28 gauge fine silver round wire, dead soft - 960cm
- Marquise cabochon, 3x1cm - 1pc
- Faceted round bead, 6mm - 2pcs
- Faceted rondelles, 3-4mm - 18 pcs
- Seamless sterling beads, 2mm (optional)
- Chain
- Or 24 - 26 gauge wire to make a chain (in which case, you will need more beads.)
- Clasp
All gauges are American (the ones Rio Grande uses)


TOOLS NEEDED:
- Torch
- Soldering surface
- Solder (any kind you prefer; I used paste)
- Pickle (or the willpower/files/sandpapers to remove firescale manually)
- A large needle or solder pick
- Chain nose pliers (the ones with a narrow tip)
- Round nose pliers
- Whichever cutting tool you like
- Hammer and anvil (or one big and one smaller hammer)
- Various jewelers files (needle and wide)
- A ruler or tape measure
- A sharpie or permanent marker

OPTIONAL:
- oxidizing liquid of choice
- rotary tool/flex shaft (such as Foredom, Dremel, etc)*
- Various polishing buffs and paste, if needed
- 3M 1-micron and 6-micron radial bristle discs
- buffing cloth
- Sanding paper in various grits (400-8000)

* In case you do not own a rotary tool, you can polish the pendant manually with polishing pads and cloths or with a nail polisher and polishing paste.

In case you need soldering equipment here are the Rio Grande item numbers:
- Soldering surface (502064)
- Solder (103100)
- Torch - i use a hardware store pencil torch mostly (about 10-15$ on Ebay, Rio doesn't carry those)

And these are excellent sanding papers just in case you need some :D - 3M Tri-M-Ite Imperial Polishing Paper Assortment (337308). Cut them up in smaller pieces and one set will last for years.

I think this should cover the "tutorial description" part :D If you have any questions at all please ask me before you buy the tutorial.


Thank you very much and have fun making this pendant! \o/
