Carbon Fiber Tow, Approx 69 Feet- (Contact shop to request actual ship cost for multi items)

+ $4.00 shipping
+ $4.00 shipping

Item details

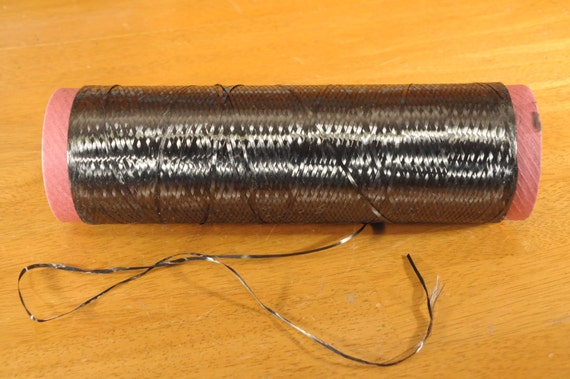

Carbon Fiber Tow (Yarn or Roving).

The correct term for a bunch of individual strands of carbon fiber in the cross section of a thin rectangle is "tow". I added the other terms, yarn and roving, which are officially used to describe Kevlar and fiberglass.

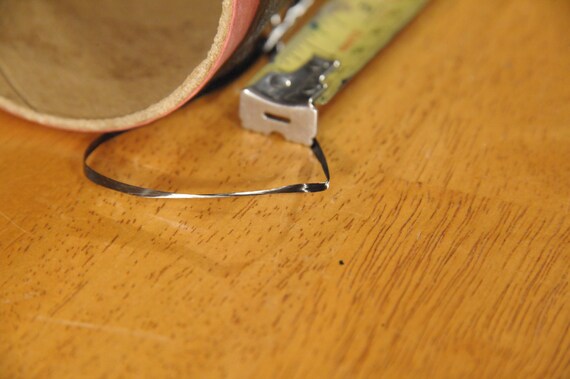

The thin rectangle is held loosely together with sizing (individual fibers can split off the rectangle easily when they're wetted with resin). The measurements of the cross section of this tow are 2.5 mm wide by 0.07 mm thick. I'm going to try to calculate the rough number of feet on this spool:

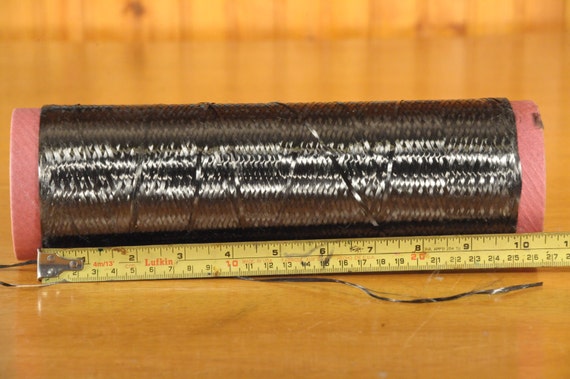

The length of one winding of one piece of tow from one end of the spool to the other end is (approximately) 3 feet.
(The following measurements are done with a known accurate Mitutoyo digital dial caliper).

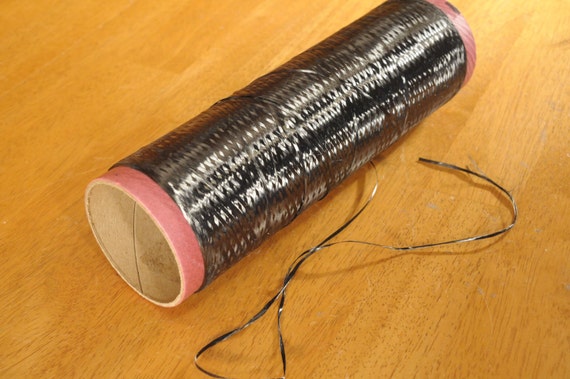

The diameter of the cardboard tube alone is 81.23 mm.
The diameter of the tube with the carbon tow on it is 84.50 mm.
That makes the thickness of all the layers of tow on the carboard equal to 1.63 mm (84.50 - 81.23 = 3.27, dividing 3.27 by 2 gives the thickness of the tow on the cardboard tube: 3.27/2 = 1.635 mm.
Dividing the total tow thickness by the thickness of one piece of tow gives the number of windings (going once from end to end): 1.635/0.07 = 23.36 windings. Rounding that down to 23 windings and multiplying the total length by the number of feet in 1 winding 23 x 3' = 69 feet total length.
The cheapest I can find this is $0.099 per foot here:
http://www.ebay.com/itm/12k-Carbon-Fiber-Tow-Hercules-IM7-/221223238525?hash=item3381eebb7d:g:EhkAAMXQY8JRhVl0
$0.099 x 69 feet would equal $6.83 worth of carbon fiber on this spool. This has not been respooled to a smaller weight spool, so all the strands are laying flat (except for about 4 or 5 feet of loose tow at the end). I'm selling this relatively small and inexpensive roll for people who might want to try using it by hand or in a DIY setup with a mandrel for the spool held in a vise and another mandrel with a tube or irregular shape chucked into a drill. Provide a means to wet the tow with resin, turn the drill on and wind away. That's the basic idea behind a process called "Filament Winding". See the Wiki article on it here:
https://en.wikipedia.org/wiki/Filament_winding
I see there are also at least a couple YouTube videos on the subject near the Wiki article.
The filiment winding section above was written with fiberglass roving in mind, but it could be done with carbon fiber tow, also.
Here are the Wiki articles on carbon fiber:
https://en.wikipedia.org/wiki/Carbon_fibers
and carbon fiber composites:
https://en.wikipedia.org/wiki/Carbon_fiber_reinforced_polymer
---
