Need to add some thump? Don't want to use a VCO, ADSR, and VCA to make it? Then this kit is for you.
Full Color Instructions https://www.pdf-archive.com/2016/09/07/bss-drum-kick-drum-1-0-instructions/
Demo Video Bass Kick https://youtu.be/ETPTUppd65s https://youtu.be/iGlbtQu7gkk
The module contains two independent drum sound generating circuits. Circuits are turned to produce sounds similar to Bass and Kick drums. Based on a self excited Bridged-T Filter. Takes 5 millisecond trigger pulse and outputs a drum sound. Also compatible with gate signals (second drum sound produced when gate input is removed)

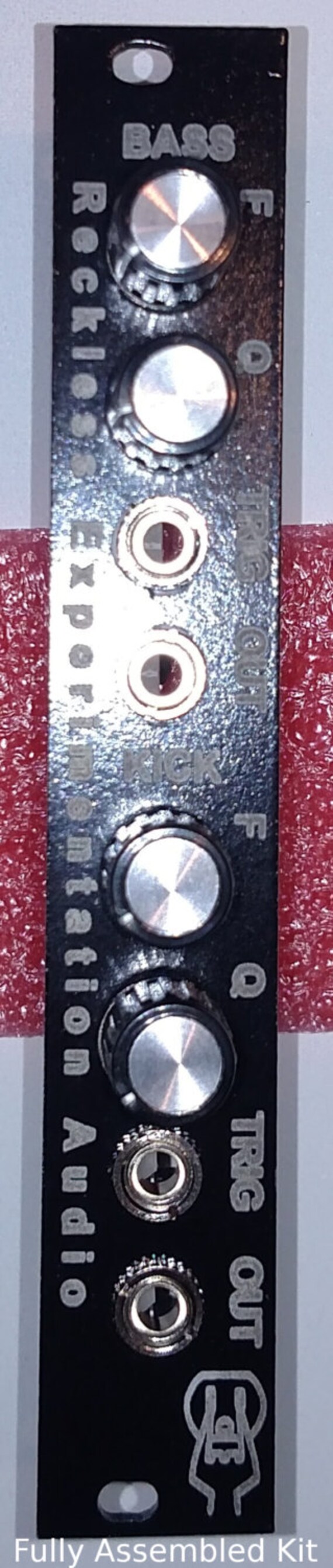

Two control knobs F and Q F controls the frequency of the drum sound. Q controls the sharpness. Due to the nature of Bridge-T filters, the controls do not operate entirely independent of one another.

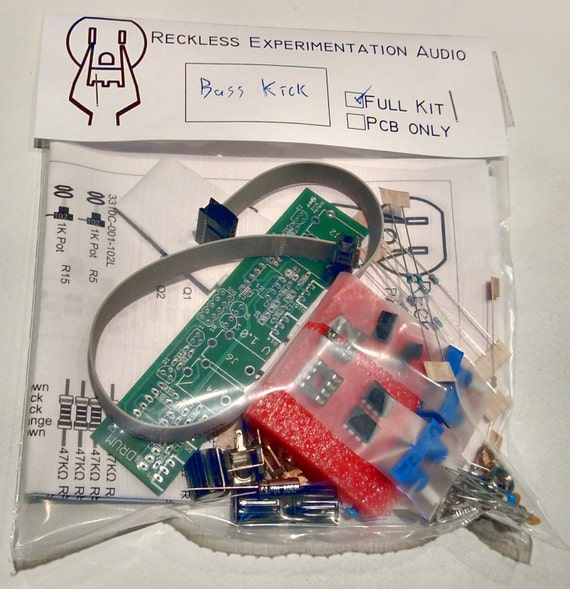

What's in the Bag? Front Plate, PCB, and all the parts needed to complete the module Parts list and enlarged image of PCB to aid in assembly 12 inch 10 pin unpolarized power cable Two M2.5 screws Two M3 screws
Input impedance 100K ohm Output impedance less then 1K ohm Compatible with both 5V and 12V trigger pulses with an output impedance of 1K ohm. Current consumption: +12V <10mA, -12V <10mA compatible with +-15V systems. Module has no built in polarity protection.
Bass Kick Assembly video https://youtu.be/SLvajUZa-mQ
