F1430 Sit On Top Kayak Full Size Templates, Set of Plans and Assembly Manual

$99.99
Free shipping
$99.99
Made to order
Preparation takes 3-5 business days
Arrives from the United States

Features
Handmade

Item details

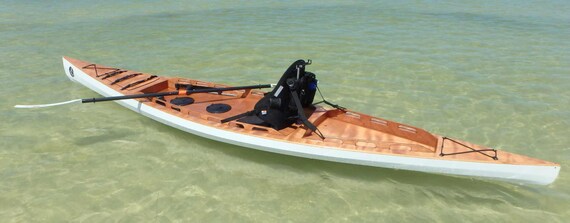

This set of plans will get you going to bild your own F1430 Kayak. This 14' long by 30" wide kayak is a huge head turner on the water, a real work of art and a superb performer.
Dont be fooled by the outstanding looks: it's actually not hard to build: Juts use our full-size templates to cut out the panels, follow the build manual, and reference the set of plans. With the purchase you also get comprehensive technical support by phone and/or email.
Check out the specs of this beautfiul kayak here:
https://www.bedardyachtdesign.com/designs/kayaks/f1430-fishing-kayak/
And follwo us on Facebook:
https://www.facebook.com/BedardYachtDesign/

The 2017 updated F1430 set of plan uses reference points on the hull to speed up the assembly process, and also updated bulkheads that will save some fitting time and save some weight

Included are printed copies of:

24″x18″ (Arch C) Lines Drawing

24″x18″ (Arch C) Outboard Profile & Deck Plan

24″x18″ (Arch C) Construction

24″x18″ (Arch C) Construction Details

24″x18″ (Arch C) Sheathing schedule

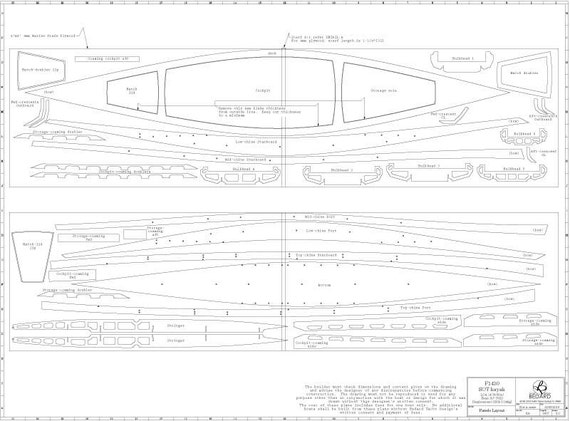

24″x18″ (Arch C) Panels Layout

24″x18″ (Arch C) Temp Frames & Reference Points

24″x 15ft Full-size Templates A (film)

24″x 10ft Full-size Templates B (paper)

8-1/2″x11″ Assembly manual

To complete this boat you will need:

4 sheets of 4mm marine grade plywood
1 sheet of construction plywood, thickness between 1/4″ and 1/2″
1 gallon of epoxy laminating resin
1/2 gallon 2:1 epoxy-activator
1/2 gallon of wood flour
10 yards of 4oz/sq.yd. Fiberglass cloth
40yd 6oz cloth tape x 2″wide
10ft carbon tow
Seat and backrest
Foot braces
6″ Hatch Cover Deck Plate (2x)
Nylon webbing, bungee chord and hardware
Varnish and/or paint

For international checkout (outside of US) a shipping fee of $45 is added. Once the actual fee is determined, we will refund the difference.


FAQs

Due to the nature of the information that we supply, plans purchases are non-refundable. we will gladly cancel your order if you request so before the item ships.

Very easy! The plywood panels are edge-joined using plastic ties, then glued solid using epoxy glue. The process is very quick, yields a great looking, high performance and very light craft. So easy in fact that a 7 year-old can do it. Check this video out: https://www.youtube.com/watch?v=WRi1NhgRyWg

Due to the nature of the information that we supply, plans purchases are non-refundable. we will gladly cancel your order if you request so before the item ships.

Very easy! The plywood panels are edge-joined using plastic ties, then glued solid using epoxy glue. The process is very quick, yields a great looking, high performance and very light craft. So easy in fact that a 7 year-old can do it. Check this video out: https://www.youtube.com/watch?v=WRi1NhgRyWg
