dxf file for steam punk switch plates. 4 styles

Sold by MyLaserCutting

This is a digital file

$20.00
Get Shipping Estimate
$20.00
In stock
Digital download

Features
Digital
Made in Azusa, California

Item details

Group of 4 dxf files.

Steam punk wall switch covers.

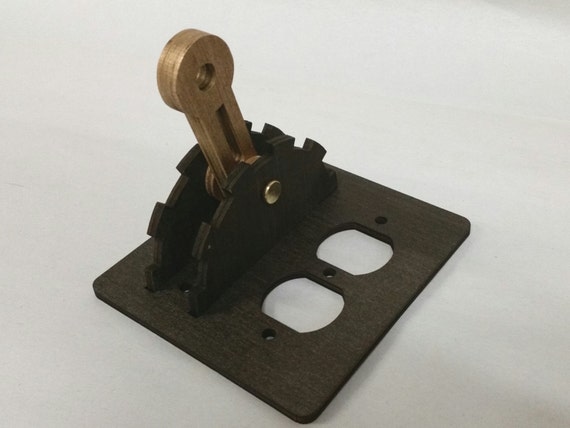

Includes dxf files for single, double, triple, and switch/plug style wall switch covers.

Photos are for informational purposes only.
This listing is for the dxf files only.

Perfect for laser cutting in wood or steel or plasma cutting in steel.
Requires 3/16 material.

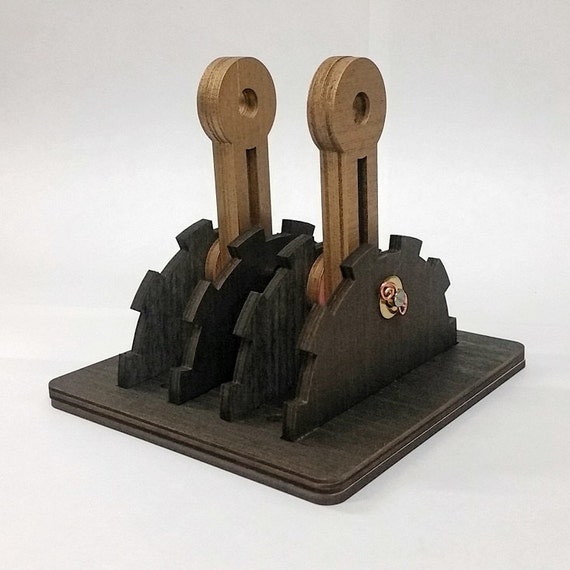

The wood 'lever' shown is made of 2 pieces of 3/16 sandwiched and glued together.
For a steel lever you can use 3/8 material or a single piece of 3/16 or 1/4 inch and add washers.
The "gasket" shown in the layout is made of 1/8 MDF, however, 3/16 wood could also be used for this or 11 ga steel.
The "pin" is a brass door hinge pin, cut to length, drilled for a cotter pin; or a 1/4-20 bolt could be used for this.

This is original artwork created by Fred Nelson Fabrication and we legally own the content (sometimes called intellectual property). You are welcome to make and sell physical items from the digital files however, the files themselves are not intended for distribution or re-sale and may not be copied, duplicated, or transmitted in any way.

Buyer agrees not to copy or distribute the electronic files.
