High Torque Clock Movement (Silent Sweep) Extended Shaft with 9-1/4 in. Long Balanced Fancy Sword Hands (No8), Large Wall Clock

Sold by clockparts
(2)
$18.95+
Free shipping
$18.95+
In stock
Preparation takes 1-2 business days
Arrives from the United States

Item details

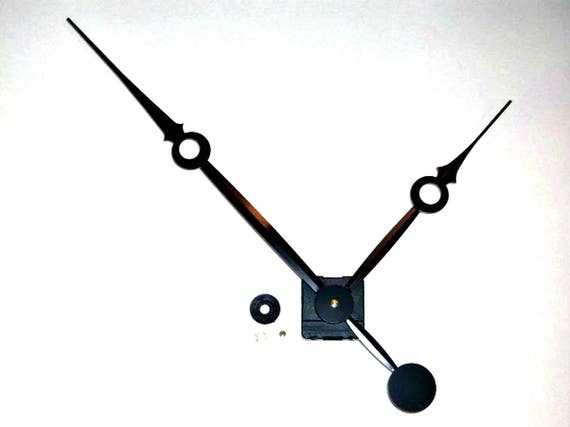

Make that large clock with this high torque quartz movement (silent sweep) with extended shaft for extra clearance when running long balanced hands and large 9-1/4" (#8) balanced metal hands.

Includes high torque motor with your choice from 3 extended threaded shaft lengths and long 14" black balanced metal hands.

This is a continuous motion high torque movement, no stepping of gears, super quiet......most quiet high torque motor available. Those of you with keen hearing will greatly appreciate it's quietness.

high torque movement:

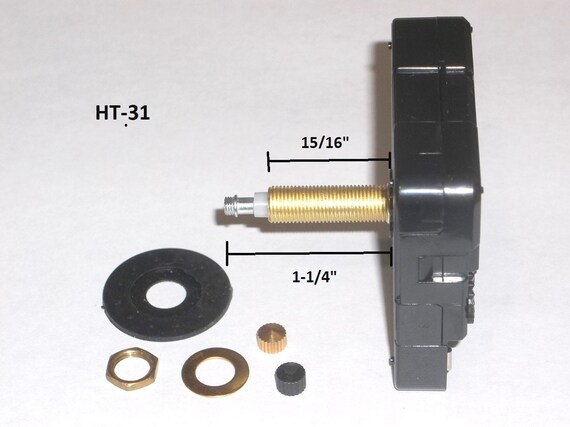

case size: 2-1/8" sq x 5/8" thick, 5/16" diameter shaft
choose from 3 threaded shaft lengths:

1/4" threaded shaft, total 5/8" including hand stem
7/16" threaded shaft, total 13/16" including hand stem
9/16" threaded shaft, total 15/16" including hand stem

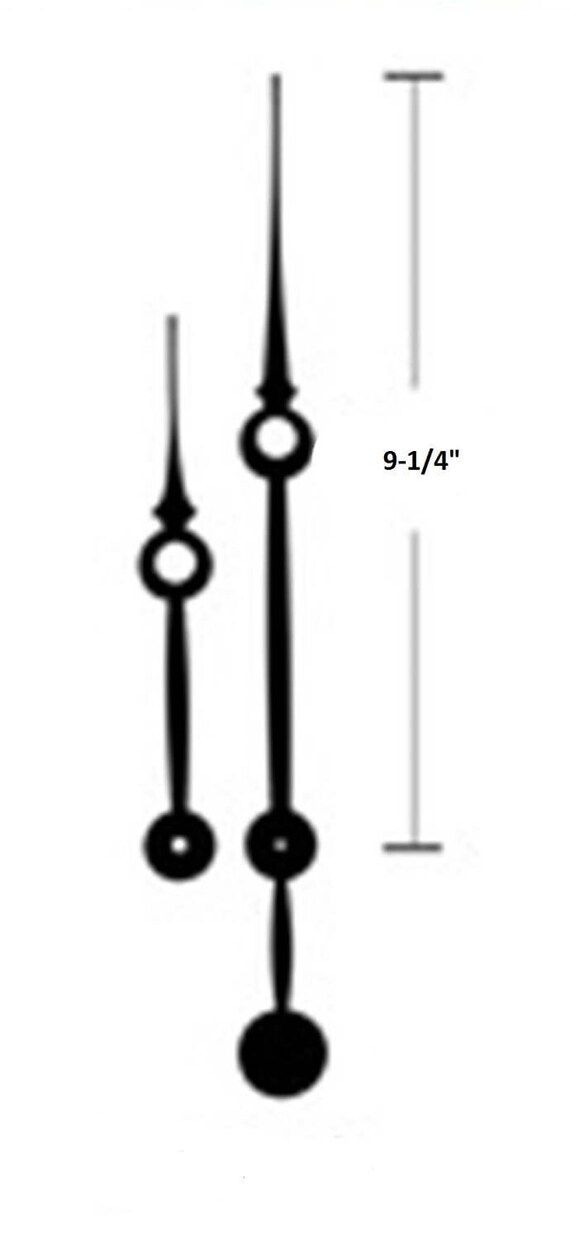

9-1/4" balanced hands:
minute hand is 9-1/4" long, from center of mounting hole to end tip, total length is 12-7/8" end to end and counterbalanced (weight to balance hands)
hour hand is 7-1/4" from end tip to center of mounting hole, total length is 9-3/4" (end to end)

3 yr factory warranty
requires one "AA" battery (not incl.)
brass mounting hardware ( hex and kurl nuts, brass washer and rubber washer)

Photo of assembly will be attached to your purchase email

NOTE ON MEASURING:

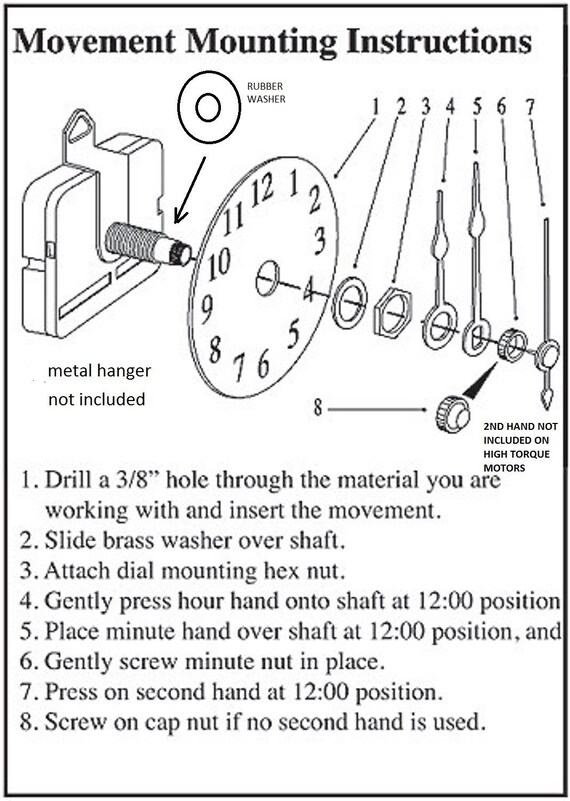

Shaft length is brass threaded portion that must pass thru your clock face, leaving a couple of threads to mount retaining nut.
(ex., if working with 1/4" tile as your clock face....then order the 38" threaded shaft)

MEASURING DIAL FOR HAND SIZE: measure from top of #12 to bottom of #6, divide in half. This will give your approx. minute hand length.

For larger volume and questions please email me
