16×24 Timber Frame Plan

Sold by TimberFrameHQ

This is a digital file

$67.00
Get Shipping Estimate
$67.00
In stock
Digital download

Features
Digital

Item details

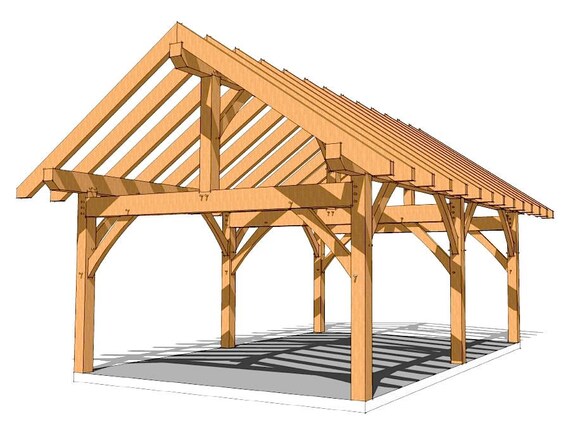

This versatile plan could be finished out as a storage shed, a picnic pavilion or even a glamping cabin. It measures 16’ wide by 24’ deep, with two generous bays. Enclose the entire structure, or enjoy part of it as a delightful porch. The plate height of 9’10” creates a roomy interior. Generous gable-end overhangs make a strong statement.

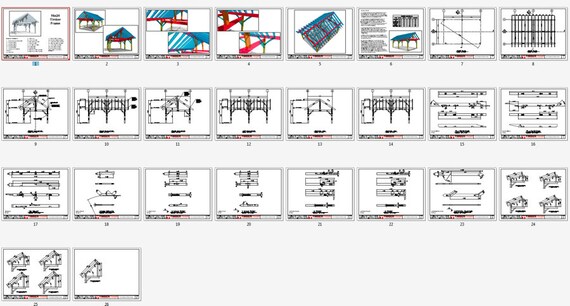

The drawings include 26 sheets, including renderings, timber schedule, plan, elevation and sectional drawings along with all the piece and joinery details you will need to build this small timber frame. Formatted in instantly-downloadable PDF for 8 ½” x 11’ paper.

While the plan has an 8″ roof pitch by default we have added the dimensions for 3, 4, 5, 6, 7, 9, 10, 11, 12 inch roof pitches to allow you the option to choose. in this set of plans.

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

Wind / hurricane / tornado
Seismic / earthquake
Heavy snow
Flood potential
Soil instability
Timber Frame Engineering
Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
Purchaser agrees that the use of the plan is for the construction of one house or frame only*, and that the plan or any part of it will not be reproduced by any means without the written consent of the copyright owner.
