Russian ZIL-137, wooden truck model woodworking plans for DIY. PDF digital file instant download. Make your own truck. Light wood, dark wood

Sold by WoodenArmy
(1)

This is a digital file

$10.95
Get Shipping Estimate
$10.95
In stock
Digital download

Features
Digital
Made in Saint Petersburg, Russia

Item details

This is a .pdf digital file. You will not receive a paper copy of this file. This listing is for the model woodworking plans only.

No refunds on digital items once you have downloaded the *.pdf file.

Model Specifications:
Dimensions - 285 mm length, 126 mm width, 110 mm height
Parts quantity - 154
Material - wood
Build complexity - medium

PDF Specifications:
Sheets - 56
Sheets format - A4
Measurements - metric ISO

PDF Content:

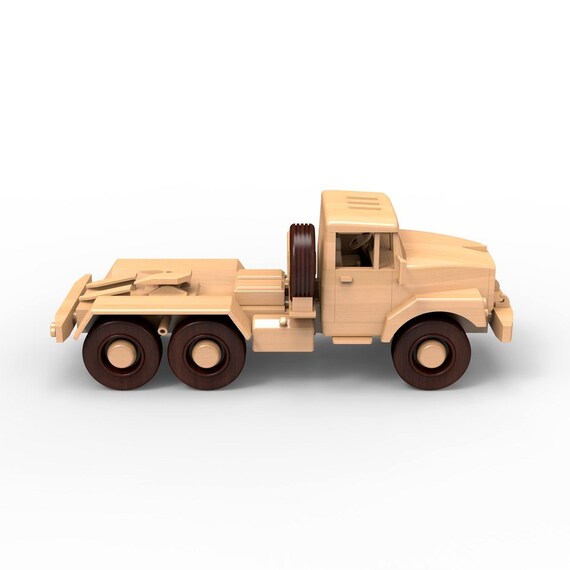

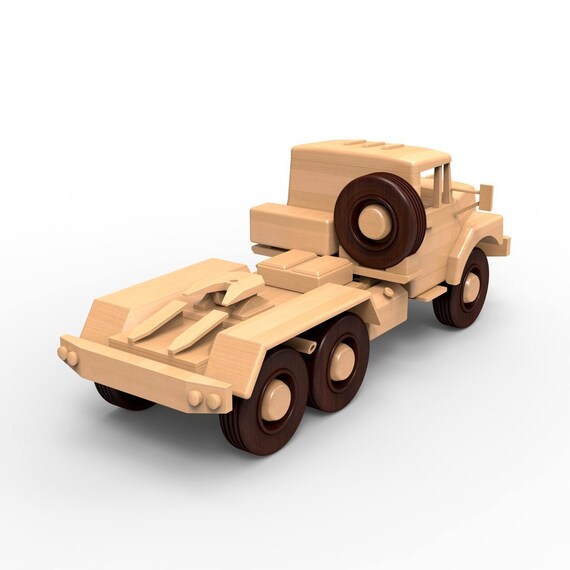

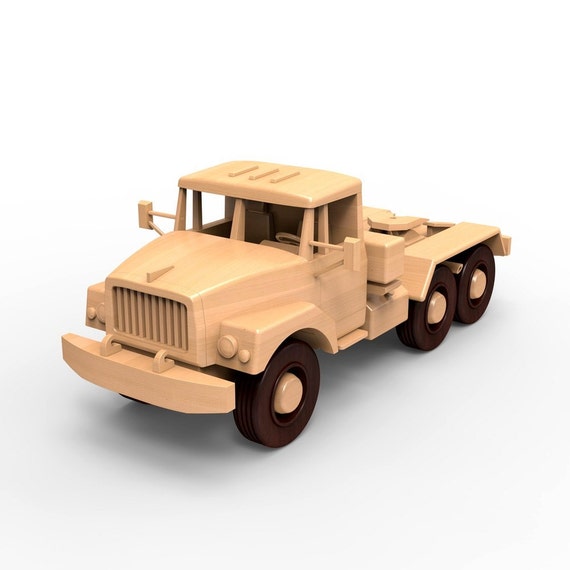

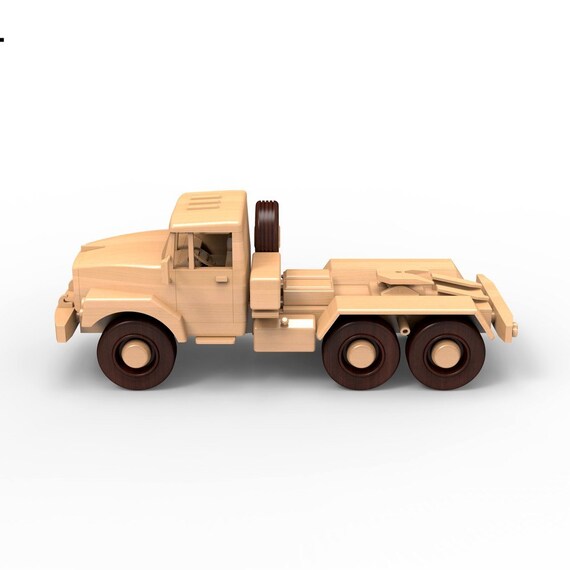

1. Model 3d render

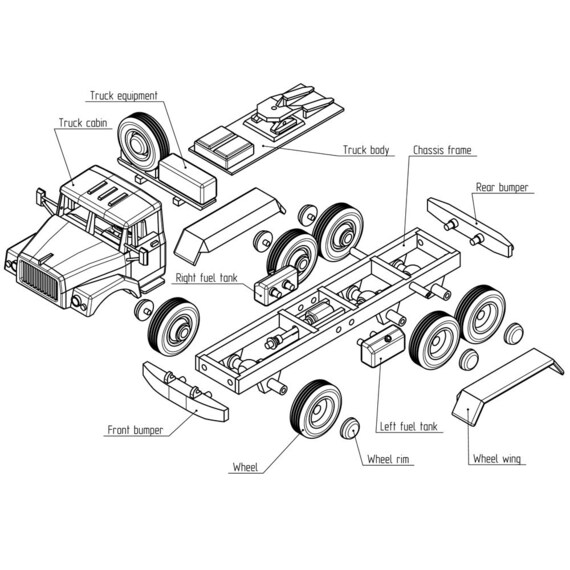

2. Isometric view of all assembly
3. Orthographic view of all assembly
4. All part plans with dimensions in metric units (mm)
5. All part plans in 1:1 scale

The plans are not include step-by-step assembly instructions so a knowledge of woodworking and tools is needed to complete the project.

The semi-trailer wood model plan set for this truck
https://www.etsystudio.com/listing/511949157/semi-trailer-for-russian-zil-137-wooden
https://www.etsystudio.com/listing/514704235/semi-trailer-for-russian-zil-137-wooden
https://www.etsystudio.com/listing/501217588/semi-trailer-for-russian-zil-137-wooden
https://www.etsystudio.com/listing/514708387/semi-trailer-for-russian-zil-137-wooden

Here is a link to the help section for digital downloads
https://www.etsy.com/help/article/3949?ref=help_search_result

If you have any problems downloading the .pdf file, you may contact me and I will send it to you e-mail.

You can print this plans it on your own printer.

This item is a limited license. Under this license you are permitted to build the model for personal and non-commercial use. You are explicitly not permitted to sell ans share the model or the plans for building the model.
