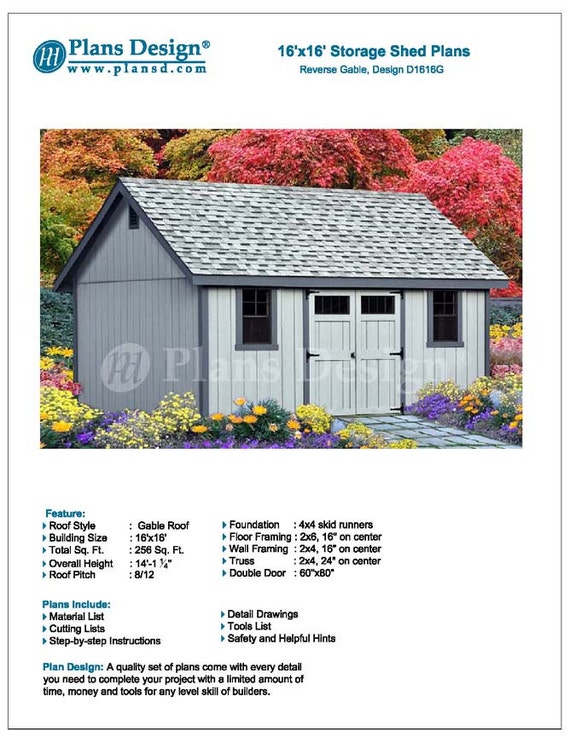

16' x 16' Storage Gable Shed Plans / Blueprints, Material List, Detail Drawnings and Step-by- Step Instructions Included #D1616G

Sold by PlansDesign
$20.95
+ $2.95 shipping
$20.95
+ $2.95 shipping
In stock
Preparation takes 1-2 business days
Arrives from the United States

Features
Handmade

Item details

Easy to Build:
. Reverse gabled roof is made of two surfaces that slope upward to meet along a single ridge, forming a peak at either end of the house and allowing debris, rain and snow to slide off the roof on either side. This version of our popular dual shed design features simpler construction and an easy to construct roof line system. Build this versatile dual purpose shed as a functional addition to any yard, garden or estate. Enjoy the roomy shed offers large square feet of storage space and a roof design that offers extra loft storage space.

Shed Features:
. Roof Style : Reverse Gable
. Building : 16' x 16'
. Overall Height : 14' -1 1/4"
. Total Sq. Ft. : 256 Sq. Ft.
. Roof Pitch : 8/12
. Foundation : 4 x 4 Skid Runners
. Floor Framing : 2 x 6, 16" On Center
. Wall Framing : 2 x 4, 16" On Center
. Rafter : 2 x 4, 24" On Center
. Double Doors : 60" x 80"

Plans Features:
. Material list
. Complete cutting lists
. Step-by-step instructions

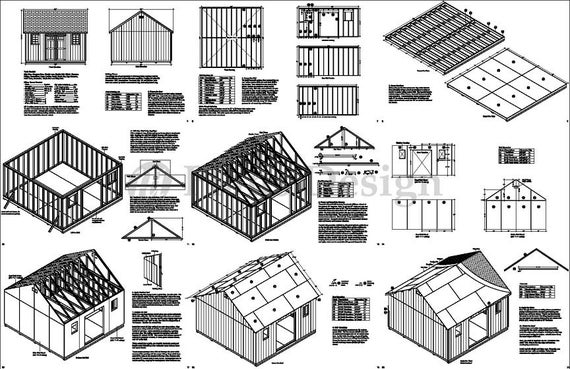

. Detail drawings
. Tools List
. Safety and helpful hints
