SO20,SOP20,SOIC20 1.27mm(0.05") to 2 x IDC2x5 connector.

$1.25
+ $8.00 shipping
$1.25
+ $8.00 shipping
In stock
Preparation takes 1-2 business days
Arrives from Poland
Returns and exchanges accepted
See this seller's return policy

Features
Handmade
Made in Tychy, Poland

Item details

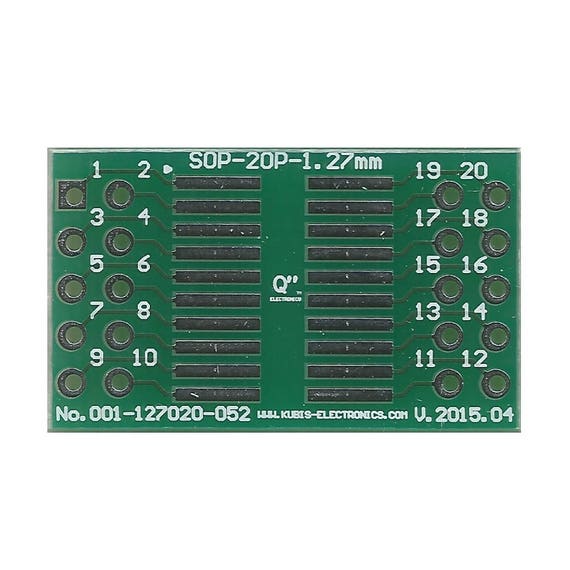

PCB adapter plate for IC in packages: SO20,SOP20,SOIC20 1.27mm(0.05") on connector type 2 x IDC2x5. Helpful using small microcontrollers and peripheral circuits.

Technical data:
◾Order number: PCB-001-127020-052
◾Dimensions: 25.4mm x 15.24mm(1.0" x 0.6")
◾PCB thickness: 1.5mm(0.06")
◾Raster: 2.54mm(0.1")
◾Path width: 10mils(0.254mm)(0.01")
◾Connectors holes diameter: 0.9mm(0.035")
◾Weight: 1.03g
◾Material: FR4
◾One side PCB
◾Copper thickness: 35um
◾Solder mask
◾Description mask

PCB adapter fits for SMD packages:
◾SO20 pin pitch 1.27mm(0.05")
◾SOP20 pin pitch 1.27mm(0.05")
◾SOIC20 pin pitch 1.27mm(0.05")
◾SO18 pin pitch 1.27mm(0.05")
◾SOP18 pin pitch 1.27mm(0.05")
◾SOIC18 pin pitch 1.27mm(0.05")
◾SO16 pin pitch 1.27mm(0.05")
◾SOP16 pin pitch 1.27mm(0.05")
◾SOIC16 pin pitch 1.27mm(0.05")
◾SO14 pin pitch 1.27mm(0.05")
◾SOP14 pin pitch 1.27mm(0.05")
◾SOIC14 pin pitch 1.27mm(0.05")

PCB plate fits for integrated circuits(20p):
◾FREESCALE MMA6222KEG
◾FREESCALE MMA6255KEG
◾FREESCALE MMA621010KEG
◾FREESCALE MMA6222AKEG
◾FREESCALE MMA6255AKEG
◾FREESCALE MMA621010AKEG
◾FREESCALE MMA3221KEG
◾FREESCALE MMA3204KEG
◾FREESCALE MMA3202KEG
◾FREESCALE MMA3201KEG
◾ATMEL ATtiny261A/261/261V
◾ATMEL ATtiny461A/461/461V
◾ATMEL ATtiny861A/861/861V
◾ATMEL ATtiny4313
◾ATMEL ATtiny2313/2313A/2313V
◾ATMEL ATtiny43U
◾ATMEL ATtiny87
◾ATMEL ATtiny167
◾ATMEL AT90PWM81
◾ATMEL AT90PWM161
◾ATMEL ATtiny40
◾ATMEL ATtiny1634
◾MICROCHIP PIC16F527
◾MICROCHIP PIC16F631
◾MICROCHIP PIC16F677
◾MICROCHIP PIC16F685
◾MICROCHIP PIC16F687
◾MICROCHIP PIC16F689
◾MICROCHIP PIC16F690
◾MICROCHIP PIC16(L)F720
◾MICROCHIP PIC16(L)F721
◾MICROCHIP PIC16(HV)F785
◾MICROCHIP PIC16(L)F1459
◾MICROCHIP PIC16(L)F1507
◾MICROCHIP PIC16(L)F1508
◾MICROCHIP PIC16(L)F1509
◾MICROCHIP PIC16(L)F1828
◾MICROCHIP PIC16(L)F1829
◾MICROCHIP PIC18(L)F13K22
◾MICROCHIP PIC18(L)F14K22
◾MICROCHIP PIC18(L)F13K50
◾MICROCHIP PIC18(L)F14K50
◾MICROCHIP PIC24F04KA201
◾MICROCHIP PIC24F(V)xxKA301
◾MICROCHIP PIC24FJ16MC101
◾MICROCHIP PIC24FJ32MC101
◾MICROCHIP PIC24FxxKA101
◾MICROCHIP PIC24FxxKL101
◾MICROCHIP PIC24FxxKL201
◾MICROCHIP PIC24FxxKL301
◾MICROCHIP PIC24FxxKL401
◾MICROCHIP PIC24FxxKM101
◾MICROCHIP dsPIC33FJ12MC201
◾MICROCHIP dsPIC33FJ16MC101
◾MICROCHIP dsPIC33FJ32MC101
◾NXP LPC800
◾NXP LPC812M101
◾NXP LPC1100XL
◾NXP LPC1110
◾NXP LPC1110
◾STM8S103F2
◾STM8S103F3
◾STM8S903F3
◾STM8SPLNB1
◾STM8TL52F4
◾STM8TL53F4
◾ST6208C
◾ST6209C
◾ST6210C
◾ST6220C
◾ST6253C
◾ST6260B
◾ST6260C
◾ST6263B
◾ST6263C
◾ST7DALIF2
◾ST7LITE1
◾ST7LITE1xB
◾ST7LITE2
◾ST7LITE3xF2
◾ST7FOXF1
◾ST7FOXK1
◾ST72623F2
◾and any...

PCB plate fits for integrated circuits(18p):
◾MICROCHIP PIC16F54
◾MICROCHIP PIC16F84A
◾MICROCHIP PIC16F87
◾MICROCHIP PIC16F88
◾MICROCHIP PIC(HV)16F540
◾MICROCHIP PIC16F627A
◾MICROCHIP PIC16F628A
◾MICROCHIP PIC16F648A
◾MICROCHIP PIC16F716
◾MICROCHIP PIC16F818
◾MICROCHIP PIC16F819
◾MICROCHIP PIC16(L)F1826
◾MICROCHIP PIC16(L)F1827
◾MICROCHIP PIC16(L)F1847
◾MICROCHIP PIC18F1220
◾MICROCHIP PIC18F1230
◾MICROCHIP PIC18F1320
◾MICROCHIP PIC18F1330
◾MICROCHIP PIC24HJ12GP201
◾MICROCHIP dsPIC30Fx01x
◾MICROCHIP dsPIC33FJ06GS001
◾MICROCHIP dsPIC33FJ06GS101
◾MICROCHIP dsPIC33FJ06GS101A
◾MICROCHIP dsPIC33FJ12GP201
◾MICROCHIP dsPIC33FJ16GP101
◾MICROCHIP dsPIC33FJ32GP101
◾and any...

PCB plate fits for integrated circuits(16p):
◾FREESCALE MMA2260D
◾FREESCALE MMA1200KEG
◾FREESCALE MMA1200
◾FREESCALE MMA1211KEG
◾FREESCALE MMA1211
◾FREESCALE MMA1212
◾FREESCALE MMA2301KEG
◾FREESCALE MMA2300KEG
◾FREESCALE MMA1213D
◾FREESCALE MMA1213
◾FREESCALE MMA1210
◾FREESCALE MMA1220D
◾FREESCALE MMA2240KEG
◾FREESCALE MMA2241KEG
◾FREESCALE MMA2244KEG
◾FREESCALE MMA2206KEG
◾FREESCALE MMA2204KEG
◾FREESCALE MMA2202KEG
◾FREESCALE MMA2201KEG
◾FREESCALE MMA1220KEG
◾FREESCALE MMA1250KEG
◾FREESCALE MMA1251
◾FREESCALE MMA1260KEG
◾FREESCALE MMA1270KEG
◾FREESCALE MMA81XXEG
◾FREESCALE MMA82XXEG
◾FREESCALE MMA82XXTEG
◾ST6200C
◾ST6201C
◾ST6203C
◾ST6252C
◾ST6262B
◾ST6262C
◾ST7LNB1Y0
◾ST7LNB0V2Y0
◾ST7LITE1xB
◾ST7LITE0xY0
◾ST7LITESxY0
◾and any...

PCB plate fits for integrated circuits(14p):
◾ATMEL ATtiny20
◾ATMEL ATtiny24/24A/24Aut
◾ATMEL ATtiny44/44A/44Aut
◾ATMEL ATtiny84/84A/84Aut
◾MICROCHIP PIC16F505
◾MICROCHIP PIC16F506
◾MICROCHIP PIC16F526
◾MICROCHIP PIC16(HV)F610
◾MICROCHIP PIC16(HV)F616
◾MICROCHIP PIC16F630
◾MICROCHIP PIC16F636
◾MICROCHIP PIC16F676
◾MICROCHIP PIC16F684
◾MICROCHIP PIC16F688
◾MICROCHIP PIC16(L)F1454
◾MICROCHIP PIC16(L)F1455
◾MICROCHIP PIC16(L)F1503
◾MICROCHIP PIC16(L)F1823
◾MICROCHIP PIC16(L)F1824
◾MICROCHIP PIC16(L)F1825
◾and any...
