Make that large clock with this high torque quartz movement (silent sweep) with extended shaft for extra clearance when running long balanced hands and large 14" balanced metal hands.
Includes high torque motor with your choice from 4 threaded shafts lengths and long 14" black balanced metal hands.
This is a continuous motion high torque movement, no stepping of gears, super quiet......most quiet high torque motor available. Those of you with keen hearing will greatly appreciate it's quietness.
high torque movement:
case size: 2-1/8" sq x 5/8" thick

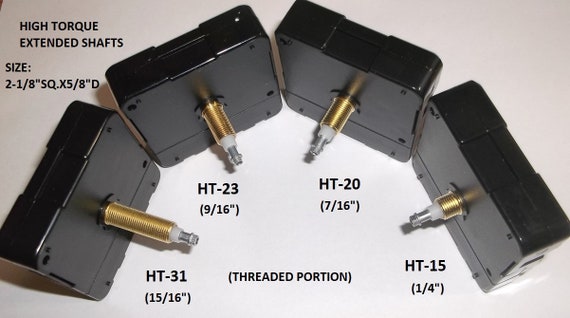

choose from 4 threaded shaft lengths:
1/4" threaded shaft, total 5/8" including hand stem
7/16" threaded shaft, total 13/16" including hand stem
9/16" threaded shaft, total 15/16" including hand stem

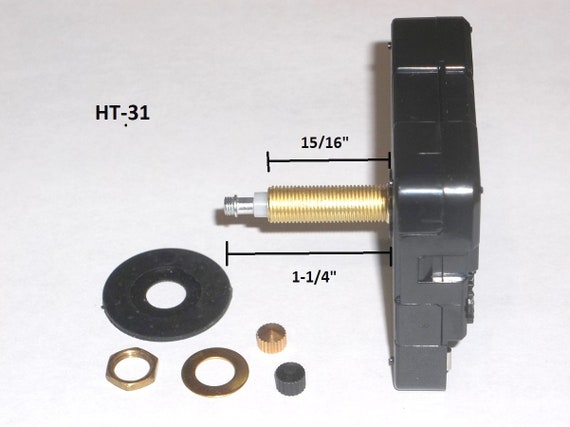

15/16" threaded shaft, total 1-1/4" including hand stem

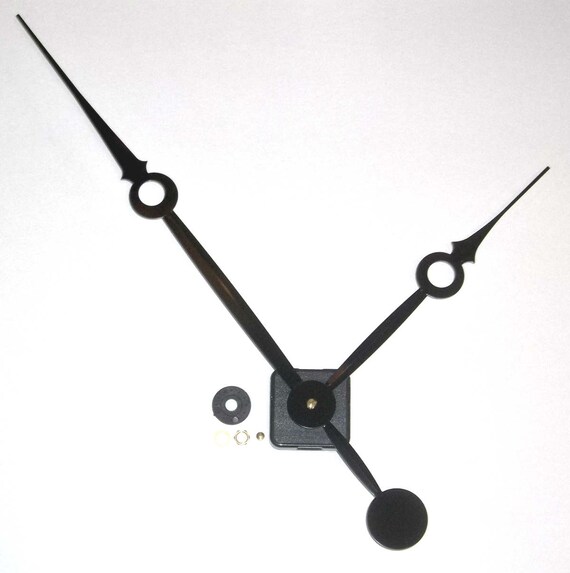

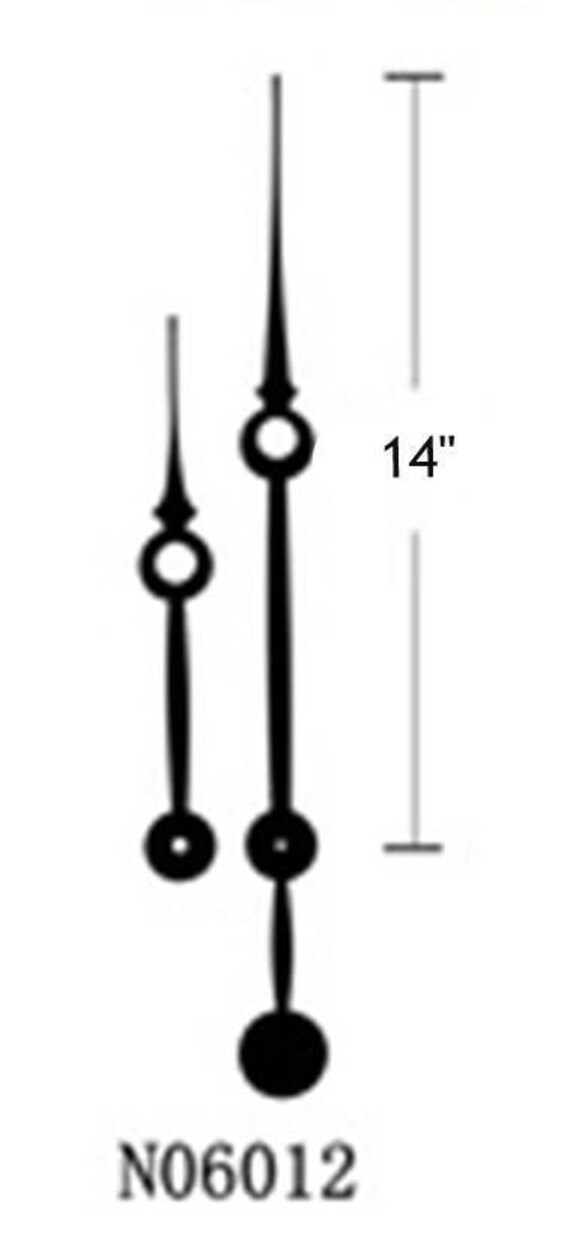

14" balanced hands:
minute hand is 14" long, from center of mounting hole to end tip, total length is 18.5" end to end and counterbalanced (weight to balance hand
hour hand is 9-5/8" from end tip to center of mounting hole, total length is 10-1/4" (end to end)
3 yr factory warranty
requires one "AA" battery (not incl.)

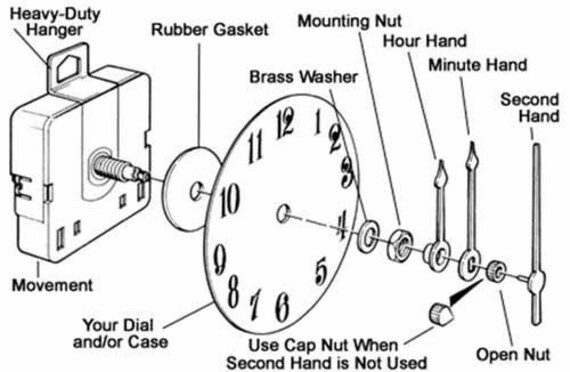

brass mounting hardware ( hex and kurl nuts, brass washer and rubber washer)
Photo of assembly will be attached to your purchase email
NOTE ON MEASURING:
Shaft length is brass threaded portion that must pass thru your clock face, leaving a couple of threads to mount retaining nut.
(ex., if working with 1/4" tile as your clock face....then order the 38" threaded shaft)
MEASURING DIAL FOR HAND SIZE: measure from top of #12 to bottom of #6, divide in half. This will give your approx. minute hand length.
For larger volume and questions please email me
