2x72" belt grinder plans

Sold by Jerswoodshop

This is a digital file

Get Shipping Estimate
In stock
Digital download

Made in Willcox, Arizona

Item details

*PDF plan only. No physical items will be shipped*

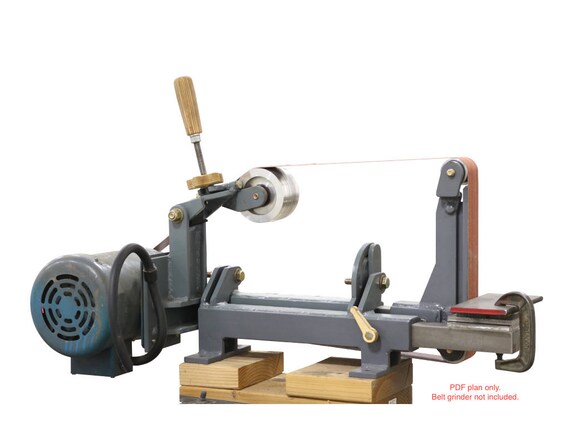

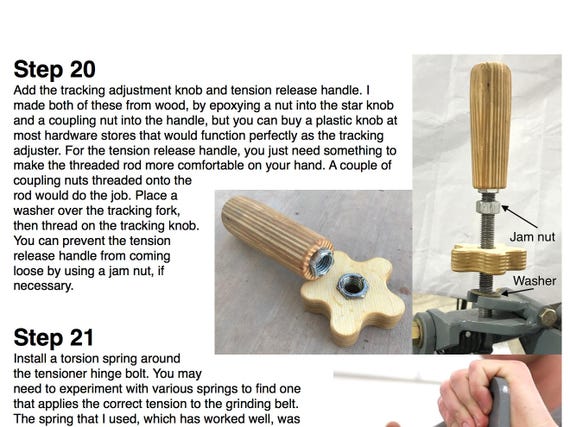

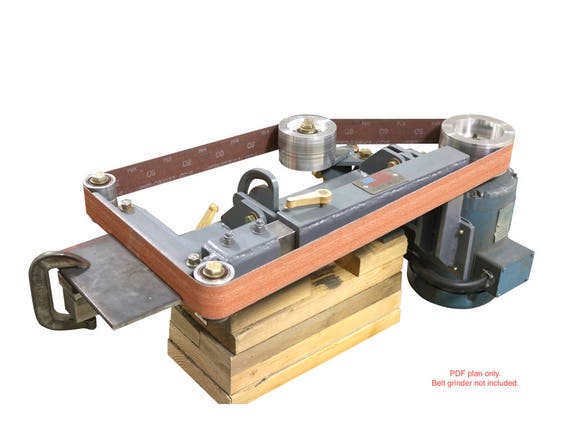

This is a PDF step-by-step instruction to help you build your own 2x72" tilting belt grinder like mine. This is one of the most versatile belt grinders ever made. Any attachment or table can be fitted in the two slots in the frame, and the grinder can be tilted 90° to serve as either a horizontal or vertical grinder. It was designed with ease of manufacture in mind, so you can build it with only a few basic tools such as a angle grinder, drill press, and welder. Please reference my videos on YouTube for more information on building this grinder: https://www.youtube.com/watch?v=a_RlL1O-bK4

This listing includes two files, which you can download immediately: PDF plans for the belt grinder and PDF plans for the platen attachment. The PDF files are all you need to get the machine up & running. Dimensions are in inches.

These plans are for personal use only. Do not resell them.

*PDF plan only. No physical items will be shipped*
