High Torque Quartz Clock Movement (SILENT SWEEP) w/Extended Shaft For Long Hands, Sweep Motion

Sold by clockparts
(6)
$9.95
Free shipping
$9.95
In stock
Preparation takes 1-2 business days
Arrives from the United States

Item details

High torque quartz clock movement capable of running long hands to and including 17.75" balanced hands. Choose from 3 shaft lengths. Includes extended shaft for extra spacing when using long balanced hands. This is a silent sweep continuous motion high torque motor.

Those of you with keen hearing will greatly appreciate it's quietness

case: 2-1/8"sq x 5/8" thick
shaft diameter: 5/16"
American "I" shaft movement, fits most standard hands
MAY BE USED AS A REGULAR MOTOR

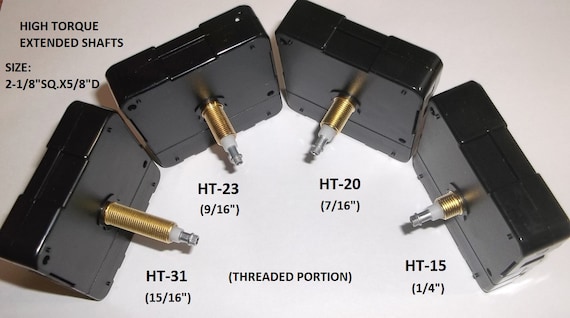

Your choice of threaded shaft:

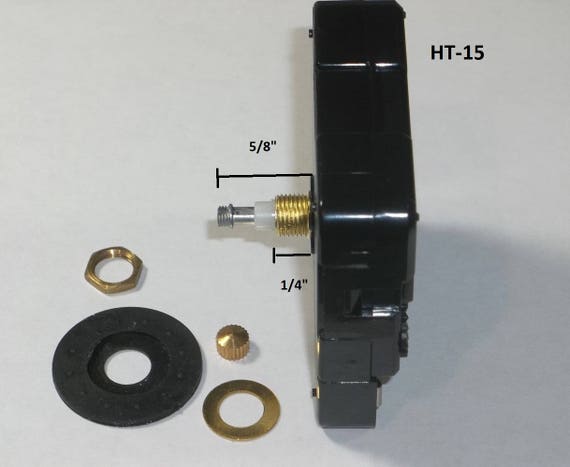

1/4" (5mm) threaded shaft, (5/8" total shaft length including hand stem)

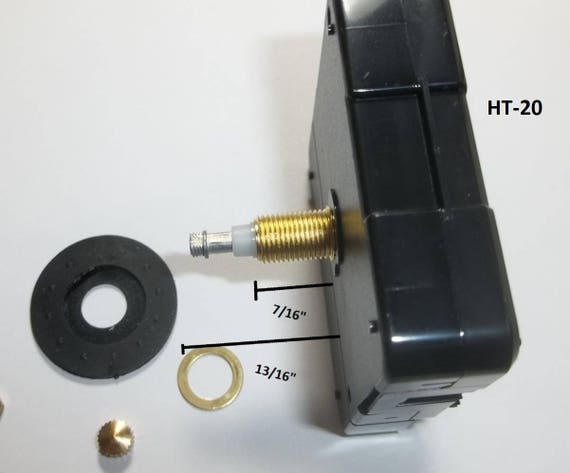

7/16" (11mm) threaded shaft, (13/16" total shaft length including hand stem)

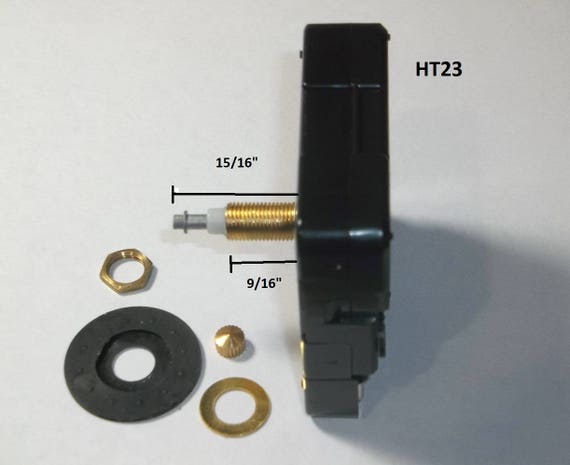

9/16" (14mm) threaded shaft, (15/16" total shaft length including hand stem)

silent continuous motion, no stepping of gears

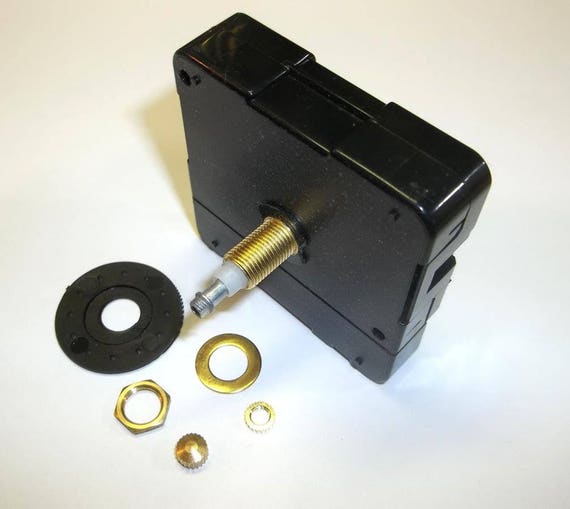

supplied with mounting hardware: rubber & brass washers, hex nut and closed end nuts
3 yr warranty
requires one "AA" battery (not incl)

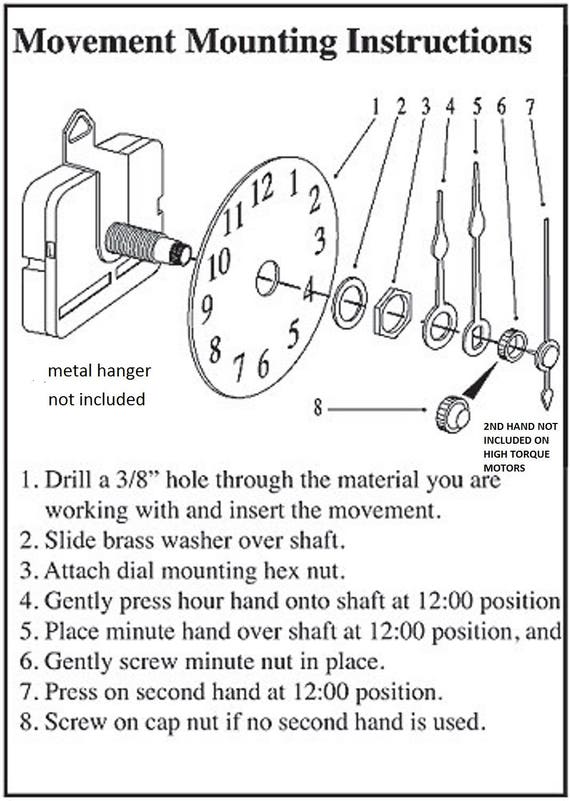

I will attach photo of assembly to your purchased email, or you can email me.

NOTE ON MEASURING:

Shaft length is the threaded portion that must pass thru your clock face, leaving a couple of threads to mount retaining nut.
(ex., if working with 1/4" tile as your clock face....then order the 7/16" threaded shaft)

MEASURING DIAL FOR HAND SIZE:

measure from top of #12 to bottom of #6, divide in half. This will give your approx. minute hand length. please see my other listings for more high torque motors with long hand

Question, please email me.
